NSN 8465-01-561-6300
Part Details | WEBBING STRAP
8465-01-561-6300 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 45281120, 4528-1-120, 8465-01-561-6300, 01-561-6300, 8465015616300, 015616300
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 84 | MAR 12, 2008 | 01-561-6300 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

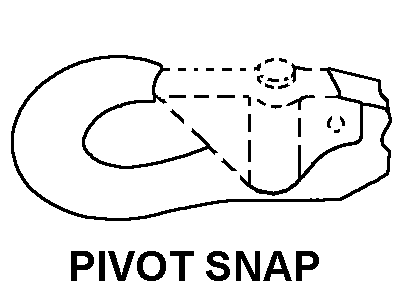

PIVOT SNAP
Cross Reference | NSN 8465-01-561-6300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4528-1-120 | 0W5E3 | STIDD SYSTEMS, INC. |
Technical Data | NSN 8465-01-561-6300
| Characteristic | Specifications |
|---|---|
| END TYPE | BOTH W/ATTACHMENTS |
| COLOR | BLACK |
| HOOK STYLE DESIGNATOR | 2 PIVOT SNAP |
| HOOK CONNECTION TYPE | SWIVELING |
| HOOK QUANTITY | 1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | T-BAR ASSEMBLY |
| SPECIAL FEATURES | PROVIDES POSITIVE TETHER BETWEEN DRIVER AND DPD |
