Part Details | INDICATING PYROMETER
6685-00-394-6353 A pyrometer which utilizes the effect of temperature variation to change the characteristics of an electrical constant and this difference of electrical potential is shown by the position of a pointer relative to a graduated scale.
Alternate Parts: SCD2740C, SCD-2740C, 603922060, 603-922-060, 3320B, 3320B, 6685-00-394-6353, 00-394-6353, 6685003946353, 003946353
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-394-6353 | 07343 ( PYROMETER, INDICATING ) |
REFERENCE DRAWINGS & PICTURES

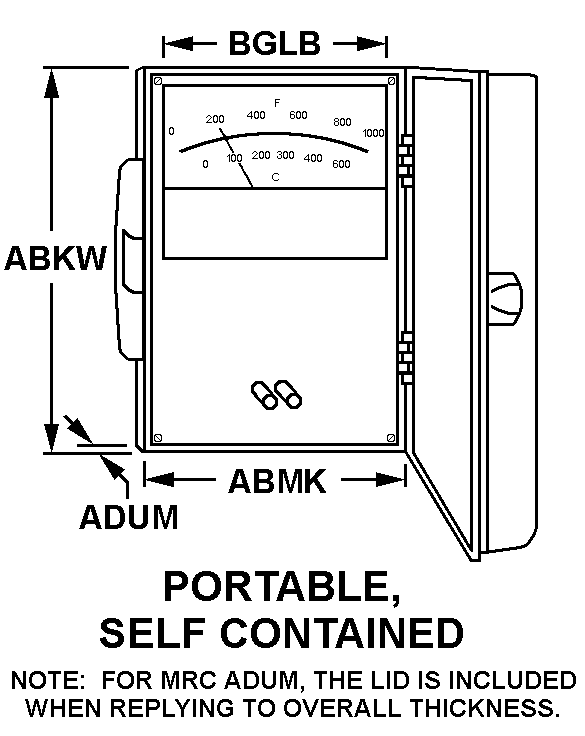

PORTABLE, SELF CONTAINED
Cross Reference | NSN 6685-00-394-6353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCD-2740C | 01518 | ALNOR INSTRUMENT COMPANY |
| 603-922-060 | 01518 | ALNOR INSTRUMENT COMPANY |
| 3320B | 0AT62 | DRESSER-RAND COMPANYDBA RECIPROCATING PRODUCTS DIV |
| 3320B | 93236 | DRESSER-RAND COWORTHINGTON COMPRESSOR OPN |
Technical Data | NSN 6685-00-394-6353
| Characteristic | Specifications |
|---|---|
| MEASUREMENT TYPE | MILLIVOLT CIRCUIT |
| SCALE TYPE | ARC |
| SCALE MEASUREMENT RANGE | +0.000 TO +1000.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | PORTABLE, SELF CONTAINED |
| OVERALL HEIGHT | 15.125 INCHES NOMINAL |
| OVERALL THICKNESS | 7.312 INCHES NOMINAL |
| OVERALL WIDTH | 8.562 INCHES NOMINAL |
| SCALE LENGTH | 3.625 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PANEL |
| END ITEM IDENTIFICATION | L.P. COMPRESSORS; SYSTEMS,D2N2; AIR COMPRESSORS,HIGH PRESSURE; AUX/AMPHIB SHIP MAINT STRATEGY PROGRAM; POSEIDON MATERIAL; COMBAT SYS SUPPORT EQUIP |
