NSN 6685-00-345-2816
Part Details | ELECTRICAL RESISTANCE TEMPERATURE TRANSMITTER
6685-00-345-2816 A device having a temperature sensing element whose electrical resistance varies with a change in temperature. It is designed to transmit information relative to temperature to an INDICATOR, TEMPERATURE, ELECTRICAL RESISTANCE. It may be a component part of a THERMOMETER, INDICATING, RESISTANCE; THERMOMETER, RECORDING, RESISTANCE. Excludes THERMOCOUPLE (as modified).
Alternate Parts: 68830053285, 68-830053-285, 12943841, 129438-4-1, 1294384, 129438-4, 1294394, 129439-4, 12943841, 129438-4-1, 6685-00-345-2816, 00-345-2816, 6685003452816, 003452816
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 20, 1974 | 00-345-2816 | 20340 ( TRANSMITTER, TEMPERATURE, ELECTRICAL RESISTANCE ) |
REFERENCE DRAWINGS & PICTURES

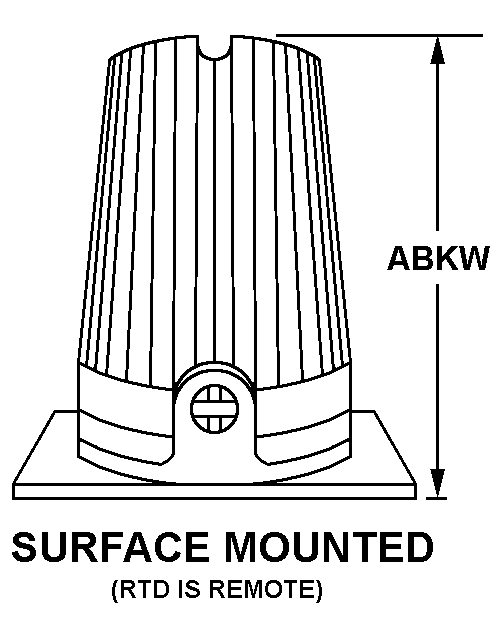

SURFACE MOUNTED
Cross Reference | NSN 6685-00-345-2816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68-830053-285 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 129438-4-1 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 129438-4 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 129439-4 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 129438-4-1 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 6685-00-345-2816
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SURFACE MOUNTED |
| OVERALL HEIGHT | 3.200 INCHES NOMINAL |
| OPERATING TEMP RANGE | -65.0 TO +160.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | AMBIENT PRESSURE RANGE 0.5 TO 15.5 PSIA; OPERATING PROBE AIR TEMPERATURE 600 DEG F MAX; OPERATING PROBE PRESSURE 90 PSIG MAX, 140 PSIG SINGLE FAILURE; 2 PORTS, SUPPLY PRESSURE AND CONTROL PRESSURE |
| END ITEM IDENTIFICATION | F-15 ACFT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SENSOR,OVER TEMPERATURE,PRECONDITIONED BLEED AIR |
