Part Details | LABORATORY CONDENSER
6640-00-899-4832 A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING.
Alternate Parts: DDC575, DD-C-575, DDC575 TY1SZ3, DD-C-575 TY1SZ3, 6640-00-899-4832, 00-899-4832, 6640008994832, 008994832
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1960 | 00-899-4832 | 19430 ( CONDENSER, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

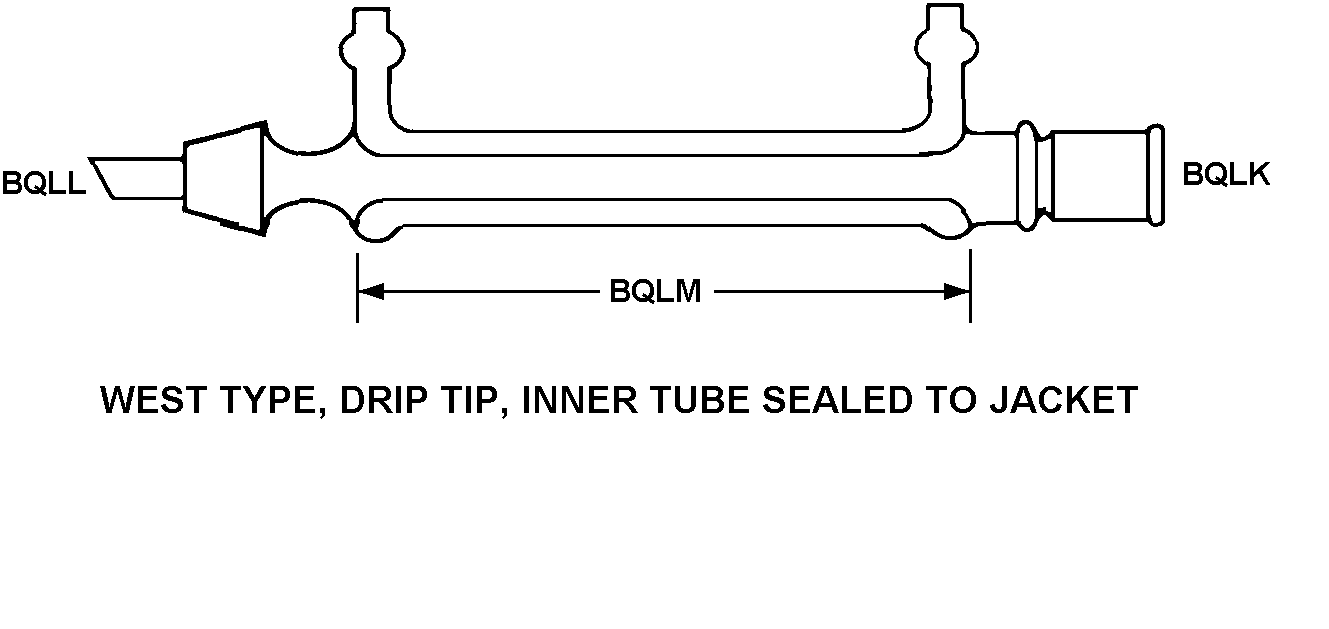

WEST TYPE DRIP TIP, INNER TUBE SEALED TO JACKET
Cross Reference | NSN 6640-00-899-4832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DD-C-575 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| DD-C-575 TY1SZ3 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 6640-00-899-4832
| Characteristic | Specifications |
|---|---|
| LINEAR EXPANSION COEFFICIENT PER DEG CELSIUS | 0.00000335 |
| LINEAR EXPANSION COEFFICIENT TEMP RANGE IN DEG CELSIUS | P0.0/P300.0 |
| CONDENSER STYLE DESIGNATOR | WEST TYPE DRIP TIP, INNER TUBE SEALED TO JACKET |
| JACKET LENGTH | 400.000 MILLIMETERS NOMINAL |
| VAPOR INLET JOINT SIZE | 24/40 STD TAPER VAPOR INLET JOINT SIZE |
| CONDENSOR OUTLET JOINT SIZE | 24/40 STD TAPER CONDENSER OUTLET JOINT SIZE |
| DRIP TIP | INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 SIZE |
