NSN 6640-00-892-1743
Part Details | LABORATORY COMMON FUNNEL
6640-00-892-1743 A device consisting of a cone shaped reservoir with an outlet stem, having a length not greater than five (5) times the diameter of the cone top. It is fabricated of material, and is of a design and size, suitable for laboratory procedures. See also FUNNEL, FILTERING, LABORATORY and FUNNEL TUBE.
Alternate Parts: 103465B, 2902080, 29020-80, MS360861, MS36086-1, 2902080, 29020-80, 5195C20, 6640-00-892-1743, 00-892-1743, 6640008921743, 008921743
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1962 | 00-892-1743 | 17202 ( FUNNEL, COMMON, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

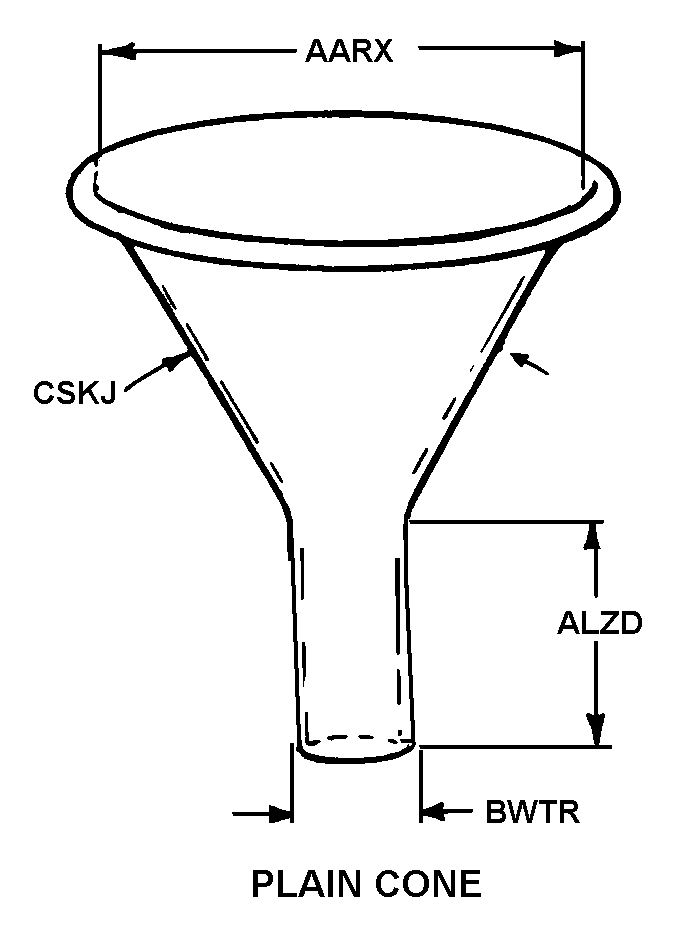

PLAIN CONE
Cross Reference | NSN 6640-00-892-1743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103465B | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 29020-80 | 75278 | KIMBLE GLASS INC |
| MS36086-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 29020-80 | 84116 | OWENS-ILLINOIS INCLABORATORY SALES KIMBLE DIV |
| 5195C20 | 59728 | THOMAS, ARTHUR H CO (INC) |
Technical Data | NSN 6640-00-892-1743
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN CONE |
| INSIDE DIAMETER | 80.00 MILLIMETERS NOMINAL |
| STEM LENGTH | 35.00 MILLIMETERS NOMINAL |
| STEM OUTSIDE DIAMETER | 16.00 MILLIMETERS NOMINAL |
| CONE ANGLE | 60.0 DEGREES |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
