NSN 6640-00-815-4192
Part Details | TEST TUBE
6640-00-815-4192 A straight wall vessel with a flat or a round bottom for use in various laboratory procedures. It may have a side arm and a mouth designed to accommodate a stopper or a screw cap. Do not use if a more specific name is available.
Alternate Parts: NNNT189, NNN-T-189, NNNT189 TY1ST3SZ1, NNN-T-189 TY1ST3SZ1, 6640-00-815-4192, 00-815-4192, 6640008154192, 008154192
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUL 17, 1968 | 00-815-4192 | 18770 ( TEST TUBE ) |
REFERENCE DRAWINGS & PICTURES

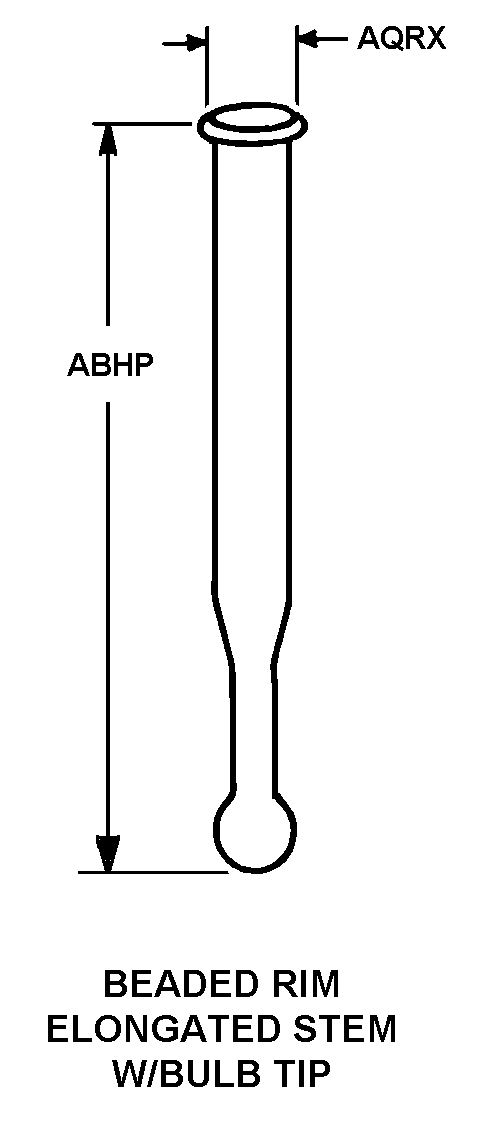

BEADED RIM ELONGATED STEM W/BULB TIP
Cross Reference | NSN 6640-00-815-4192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NNN-T-189 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| NNN-T-189 TY1ST3SZ1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 6640-00-815-4192
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BEADED RIM ELONGATED STEM W/BULB TIP |
| OVERALL LENGTH | 125.00 MILLIMETERS NOMINAL |
| TUBING OUTSIDE DIAMETER | 16.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 16.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO CONTAIN |
| PRIMARY CONTAINER TYPE | CD ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 48 |
