NSN 6640-00-585-5850
Part Details | LABORATORY BURET
6640-00-585-5850 A graduated tube, with a flow regulator, for delivering and/or regulating measured quantities of liquids or for measuring the liquids or gases received or discharged.
Alternate Parts: 17160F25, 17160F-25, S10781B, S-10781-B, 6640-00-585-5850, 00-585-5850, 6640005855850, 005855850
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | DEC 21, 1974 | 00-585-5850 | 33386 ( BURET, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

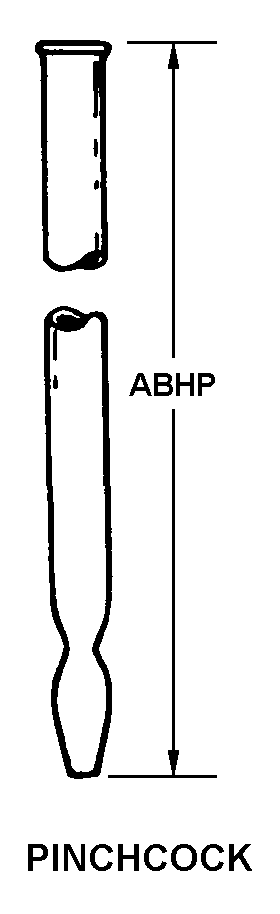

PINCHCOCK
Cross Reference | NSN 6640-00-585-5850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17160F-25 | 84116 | OWENS-ILLINOIS INCLABORATORY SALES KIMBLE DIV |
| S-10781-B | 64484 | SARGENT-WELCH SCIENTIFIC CO |
Technical Data | NSN 6640-00-585-5850
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PINCHCOCK |
| OVERALL LENGTH | 574.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 25.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE MARKING | EVERY TENTH GRADUATION |
| GRADUATION MARKING METHOD | ETCHED |
| PRIMARY CONTAINER TYPE | CD ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | FILLING TUBE BENT BACKWARD,POLYTETRAFLUOROETHYLENE STOPCOCK PLUG,SCHELLBACH TUBING TYPE |
