NSN 6640-00-494-3934
Part Details | TEST TUBE
6640-00-494-3934 A straight wall vessel with a flat or a round bottom for use in various laboratory procedures. It may have a side arm and a mouth designed to accommodate a stopper or a screw cap. Do not use if a more specific name is available.
Alternate Parts: 9840, MS361901, MS36190-1, 6640-00-494-3934, 00-494-3934, 6640004943934, 004943934
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-494-3934 | 18770 ( TEST TUBE ) |
REFERENCE DRAWINGS & PICTURES

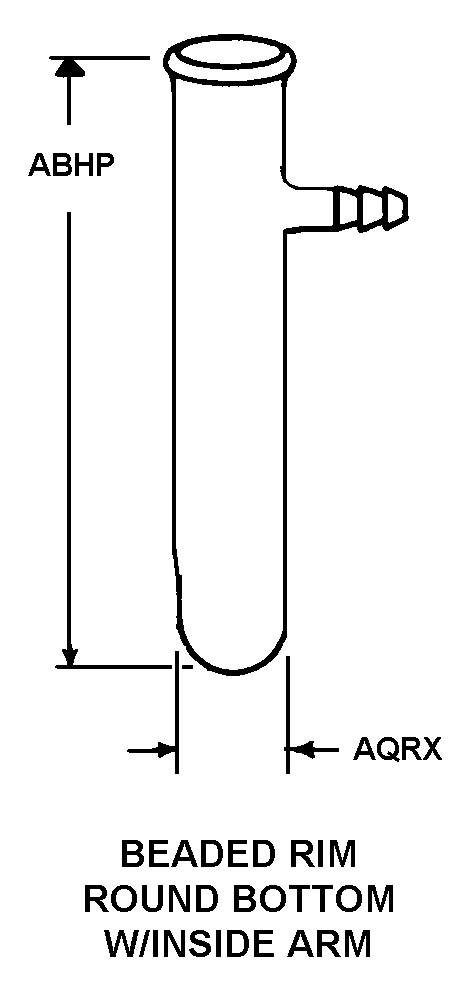

BEADED RIM ROUND BOTTOM W/SIDE ARM
Cross Reference | NSN 6640-00-494-3934
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9840 | 14674 | CORNING GLASS WORKS |
| MS36190-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 6640-00-494-3934
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BEADED RIM ROUND BOTTOM W/SIDE ARM |
| OVERALL LENGTH | 150.00 MILLIMETERS NOMINAL |
| TUBING OUTSIDE DIAMETER | 19.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 30.000 MILLILITERS NOMINAL |
