NSN 6640-00-490-3239
Part Details | LABORATORY SPATULA
6640-00-490-3239 A device consisting of a handle with a blade on one or both ends or with a blade on one end and a spoon on the other, made of porcelain, metal, or other material resistant to chemical attack. It is used to spread, mix, or convey powders or semi-solid materials. Excludes SPATULA.
Alternate Parts: 6640-00-490-3239, 00-490-3239, 6640004903239, 004903239
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-490-3239 | 17490 ( SPATULA, LABORATORY ) |

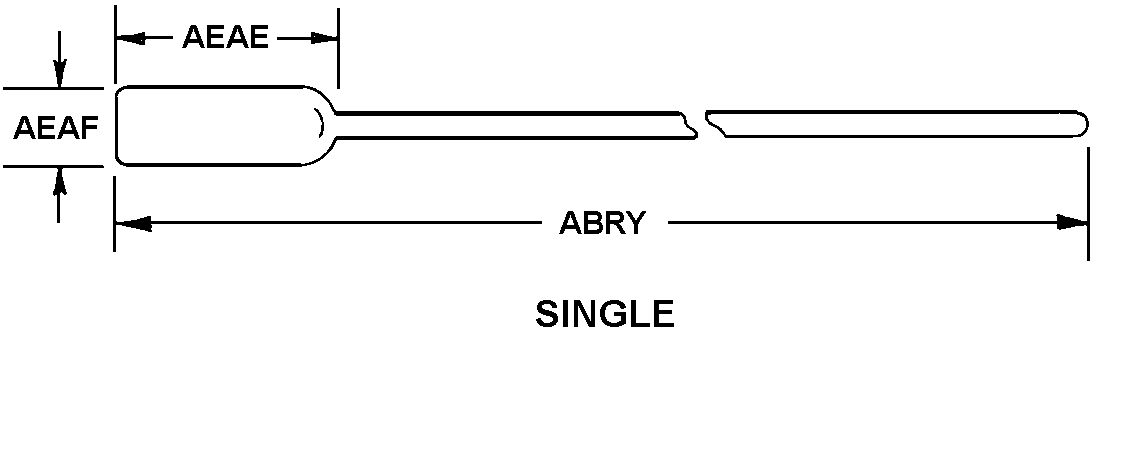

REFERENCE DRAWINGS & PICTURES
SINGLE
Cross Reference | NSN 6640-00-490-3239
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 6640-00-490-3239
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE |
| LENGTH | 125.0 MILLIMETERS NOMINAL |
| BLADE LENGTH | 20.000 MILLIMETERS NOMINAL |
| BLADE WIDTH | 10.000 MILLIMETERS NOMINAL |
| BLADE MATERIAL | ALUMINUM |
| HANDLE MATERIAL | ALUMINUM |
