NSN 6640-00-275-1170

Part Details | LABORATORY LIQUID GRADUATE

6640-00-275-1170 A vessel generally conically shaped which is graduated to measure standardized volumes of liquid.

Alternate Parts: DDG666BASIC0NLYTYPE2, 60335, 6034560, 60345-60, 6640-00-275-1170, 00-275-1170, 6640002751170, 002751170

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JAN 01, 196300-275-117016914 ( GRADUATE, LIQUID, LABORATORY )
REFERENCE DRAWINGS & PICTURES

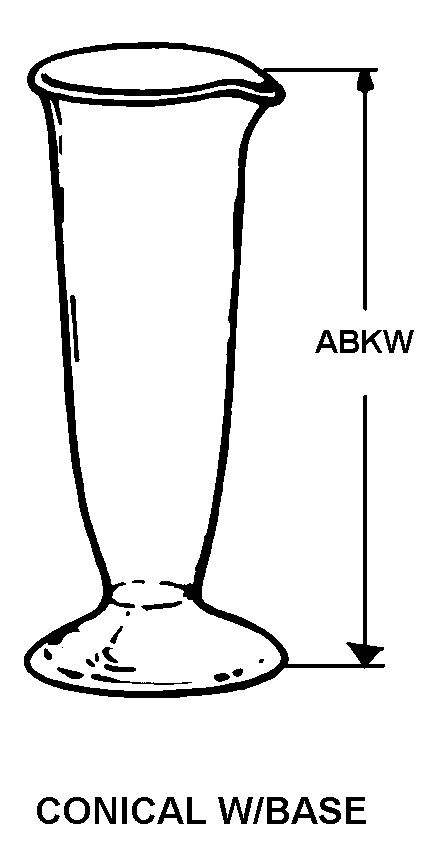

CONICAL W/BASE

GRADUATE,LIQUID,LAB | 6640-00-275-1170, 002751170
Cross Reference | NSN 6640-00-275-1170
Part Number Cage Code Manufacturer
DDG666BASIC0NLYTYPE281348FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES
6033575278KIMBLE GLASS INC
60345-6075278KIMBLE GLASS INC
Technical Data | NSN 6640-00-275-1170
Characteristic Specifications
MATERIAL GLASS
STYLE DESIGNATOR CONICAL W/BASE
OVERALL HEIGHT65.00 MILLIMETERS MINIMUM AND 75.00 MILLIMETERS MAXIMUM
CAPACITY RATING60.000 MINIMS NOMINAL
CALIBRATION FUNCTION TO DELIVER
SCALE MARKING60.0,50.0,40.0,30.0,20.0,10.0
GRADUATION MARKING METHODC$D ETCHED
FEATURES PROVIDED POUR-OUT
PRIMARY CONTAINER TYPECX ANY ACCEPTABLE
PRIMARY CONTAINER UNIT QUANTITY1
TOTAL PRIMARY CONTAINER QUANTITY1
