NSN 6640-00-264-4996

Part Details | LABORATORY FILTERING FUNNEL

6640-00-264-4996 An item with an integral porous or perforated plate, or with slits on the inside of a double wall.

Alternate Parts: 36290HCIEZ, 6640-00-264-4996, 00-264-4996, 6640002644996, 002644996

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JAN 01, 196300-264-499613458 ( FUNNEL, FILTERING, LABORATORY )
REFERENCE DRAWINGS & PICTURES

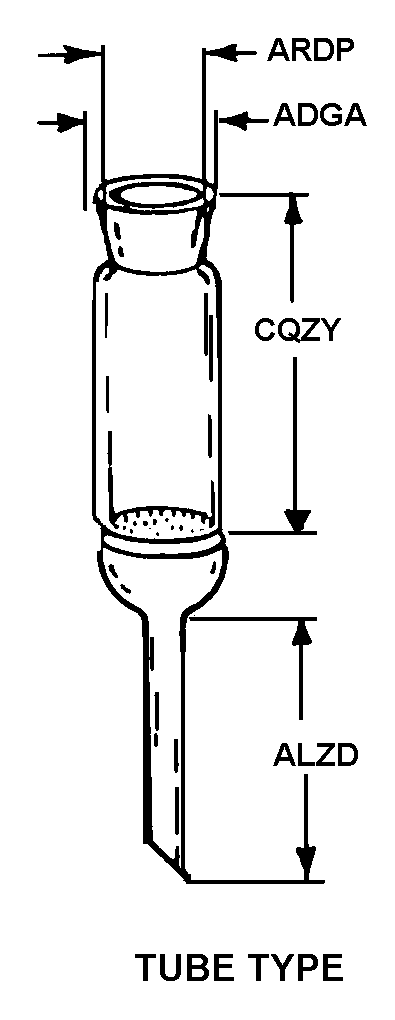

TUBE TYPE

FUNNEL,FILTERING,LA | 6640-00-264-4996, 002644996
Cross Reference | NSN 6640-00-264-4996
Part Number Cage Code Manufacturer
36290HCIEZ14674CORNING GLASS WORKS
Technical Data | NSN 6640-00-264-4996
Characteristic Specifications
STYLE DESIGNATOR TUBE TYPE
OVERALL OUTSIDE DIAMETER11.00 MILLIMETERS NOMINAL
STEM LENGTH90.00 MILLIMETERS NOMINAL
DISK DIAMETER10.00 MILLIMETERS NOMINAL
DISTANCE FROM DISK TO TOP38.00 MILLIMETERS NOMINAL
FILTERING DISK TYPE AND SIZE5.0 MICRONS FIXED POROUS
CAPACITY RATING3.000 MILLILITERS NOMINAL
PRIMARY CONTAINER TYPECX ANY ACCEPTABLE
PRIMARY CONTAINER UNIT QUANTITY1
TOTAL PRIMARY CONTAINER QUANTITY1
SPECIAL FEATURESFIRE POLISHED RIM AND LIP,NECK ACCOMMODATES A NO. 00 RUBBER STOPPER
