NSN 6625-00-066-6856
Part Details | WATTHOUR METER
6625-00-066-6856 An instrument which indicates the power consumed in an electric circuit over a period of time, and which for normal indication is calibrated in watthours or any multiple thereof. May include a demand element.
Alternate Parts: 700X65G266, 6625-00-066-6856, 00-066-6856, 6625000666856, 000666856
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-066-6856 | 00791 ( METER, WATTHOUR ) |
REFERENCE DRAWINGS & PICTURES

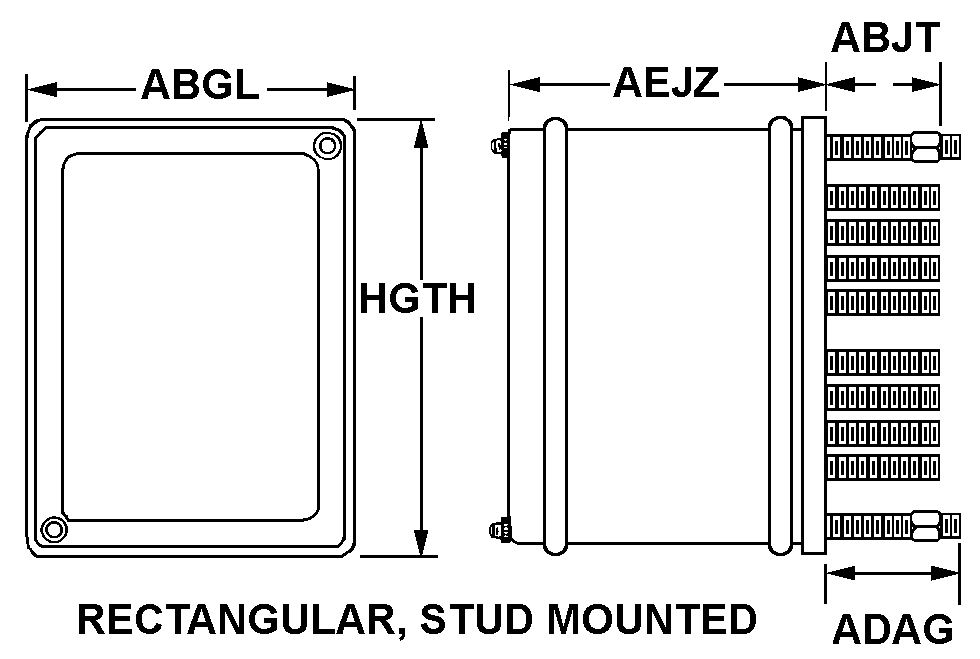

RECTANGULAR, STUD MOUNTED
Cross Reference | NSN 6625-00-066-6856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 700X65G266 | 24446 | GENERAL ELECTRIC COMPANY |
Technical Data | NSN 6625-00-066-6856
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | PANEL |
| INDICATION TYPE | C ANY ACCEPTABLE |
| VOLTAGE RATING | 120.0 VOLTS NOMINAL |
| CURRENT RATING IN AMPS | 2.5 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| WIRE QUANTITY | 3 |
| ELEMENT QUANTITY | 2 |
| CASE STYLE | RECTANGULAR, STUD MOUNTED |
| WIDTH | 6.625 INCHES NOMINAL |
| TERMINAL LENGTH | 0.750 INCHES NOMINAL |
| DEPTH | 5.687 INCHES NOMINAL |
| HEIGHT | 9.125 INCHES NOMINAL |
| CASE COVER SHAPE | FLAT |
| CASE COVER MATERIAL | GLASS |
| TERMINAL QUANTITY | 13 |
| TERMINAL TYPE | SCREW |
| TERMINAL LOCATION | CASE BACK |
| TRANSFORMER TYPE AND QUANTITY | 2 CURRENT |
| TRANSFORMER | NOT INCLUDED |
| MOUNTING CONFIGURATION | 4 MTG HOLES,1/4 IN. DIA ON 4-3/8 IN. BY 6-1/8 IN. MTG CENTERS |
| REGISTER MAXIMUM MEASUREMENT | 10.0 KILOWATT-HOUR |
