NSN 6250-00-230-0921

Part Details | LAMPHOLDER

6250-00-230-0921 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.

Alternate Parts: 53931, 53-93-1, 8484, 701, 7-01, K98982, K8772271, K877227-1, 88437271, 8843727-1, 48035110, 480351-10, 48035110, 480351-10, 6250-00-230-0921, 00-230-0921, 6250002300921, 002300921

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
62JAN 01, 196300-230-092116208 ( LAMPHOLDER )
REFERENCE DRAWINGS & PICTURES

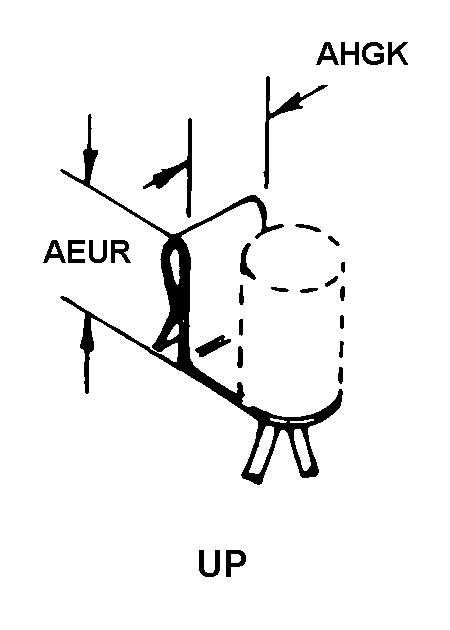

UP

LAMPHOLDER | 6250-00-230-0921, 002300921

KEY

LAMPHOLDER | 6250-00-230-0921, 002300921
Cross Reference | NSN 6250-00-230-0921
Part Number Cage Code Manufacturer
53-93-181413BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I
848400781CESSNA AIRCRAFT COARC AVIONICS DIV
7-0195263LIGHTING COMPONENTS AND DESIGNINCORPORATED
K9898249671LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
K877227-149671LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
8843727-149671LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
480351-1049671LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
480351-1002769LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
Technical Data | NSN 6250-00-230-0921
Characteristic Specifications
STYLE DESIGNATOR4 KEY
OUTSIDE DIAMETER0.437 INCHES NOMINAL
OVERALL HEIGHT0.750 INCHES NOMINAL
BODY MATERIAL PLASTIC
SHELL MATERIAL STEEL
LAMP BASE TYPE ACCOMMODATED MINIATURE BAYONET
TERMINAL TYPET ANY ACCEPTABLE
TERMINAL QUANTITY2
MOUNTING FEATURE TYPE SURFACE
MOUNTING METHOD CLIP
MOUNTING MATERIAL STEEL
MOUNTING DEVICE QUANTITY1
MOUNTING CLIP STYLE UP
CLIP HEIGHT0.594 INCHES NOMINAL
CLIP WIDTH0.500 INCHES NOMINAL
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION NOT RATED
