NSN 6240-00-069-2946
Part Details | INCANDESCENT LAMP
6240-00-069-2946 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 250R405, 250R40/5, 250R405, 250R40/5, 250R405 115125V, 250R40/5 115-125V, 250R405, 250R40-5, 6240-00-069-2946, 00-069-2946, 6240000692946, 000692946
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1961 | 00-069-2946 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

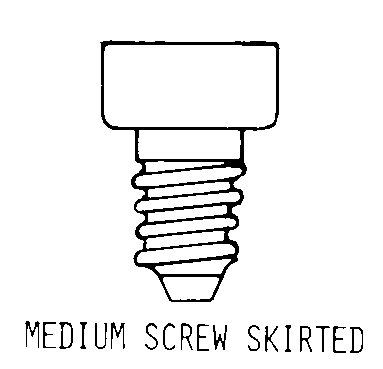

MEDIUM SCREW SKIRTED
R (REFLECTOR)
Cross Reference | NSN 6240-00-069-2946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 250R40/5 | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| 250R40/5 | 88204 | GTE PRODUCTS CORPSYLVANIA MINIATURE LIGHTING DIV |
| 250R40/5 115-125V | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| 250R40-5 | 71651 | PHILIPS LIGHTING CODIV OF NORTH AMERICAN PHILIPS CORP |
Technical Data | NSN 6240-00-069-2946
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MEDIUM SCREW SKIRTED |
| BULB STYLE | R (REFLECTOR) |
| BULB DESIGNATOR | R-40 |
| OVERALL LENGTH | 7.625 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | INFRARED REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | AC-9$AC-11 |
| WATTAGE RATING | 250.000 WATTS |
| VOLTAGE RATING | 115.000 VOLTS MINIMUM AND 125.000 VOLTS MAXIMUM |
| CURRENT RATING FOR WHICH DESIGNED | 0.460 AMPERES MINIMUM AND 0.500 AMPERES MAXIMUM |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 5000.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | HEAT RESISTANT GLASS |
| SPECIAL FEATURES | BURN ONLY IN PORCELAIN SOCKETS; DESIGNED FOR SERVICE OTHER THAN ILLUMINATION |
