NSN 6145-00-930-4330
Part Details | TELEPHONE CABLE
6145-00-930-4330 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, and specifically designed for use in telephone lines or circuits. When there are over four conductors contained in a common covering, the majority of these conductors must be arranged in pairs, quads, or combinations thereof. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, TELEPHONE. Excludes items having tinsel conductors, items having shields which cover less than the total number of conductors, or items rated for radio frequency characteristics.
Alternate Parts: 322IMRDW109, PE153PR22AWG, PE15-3PR22AWG, 322IMRDW, 1321102, 132-1102, 6145-00-930-4330, 00-930-4330, 6145009304330, 009304330
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | MAY 25, 1966 | 00-930-4330 | 00826 ( CABLE, TELEPHONE ) |
REFERENCE DRAWINGS & PICTURES

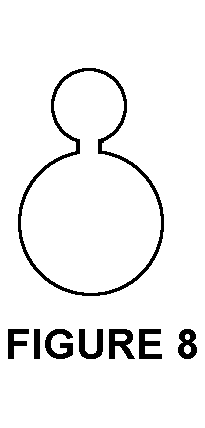

FIGURE 8
Cross Reference | NSN 6145-00-930-4330
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 322IMRDW109 | 06120 | CORNING CABLE SYSTEMS LLC |
| PE15-3PR22AWG | 06160 | DEPARTMENT OF AGRICULTURERURAL ELECTRIFICATION ADMINISTRATION |
| 322IMRDW | 8J915 | SUPERIOR ESSEX COMMUNICATIONS LPDIV SUPERIOR ESSEX COMMUNICATIONS LP |
| 132-1102 | 79566 | WHITNEY BLAKE COMPANY |
Technical Data | NSN 6145-00-930-4330
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 6 |
| ACCESSORY WIRE TYPE AND QUANTITY | 1 MESSENGER |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 3 PARALLEL PAIR |
| CROSS-SECTIONAL SHAPE STYLE | FIGURE 8 |
| CROSS SECTION OUTSIDE DIAMETER | 0.360 INCHES NOMINAL |
