NSN 6130-00-148-8784
Part Details | SELF-RECTIFYING VIBRATOR
6130-00-148-8784 An electromechanical device which interrupts the direct current input by means of a coil-driven vibrating armature (reed) whose contacts alternately open and close the direct current circuit. It is equipped with a second set of contacts which operate in synchronism with the first set and are mounted on either the same or a separate (split) armature to rectify the stepped-up alternating current voltage obtained from an external transformer secondary to produce a pulsating direct current output. For items designed to operate over a wide and comparatively high frequency range and whose coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Alternate Parts: D424112, D424-112, G65P50141, G65P5014-1, 406675, V6675, 5378011, 537801-1, L2227811, L222781-1, 3H669128, 3H6691-28, 6130-00-148-8784, 00-148-8784, 6130001488784, 001488784
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | JAN 01, 1963 | 00-148-8784 | 00744 ( VIBRATOR, SELF-RECTIFYING ) |
REFERENCE DRAWINGS & PICTURES

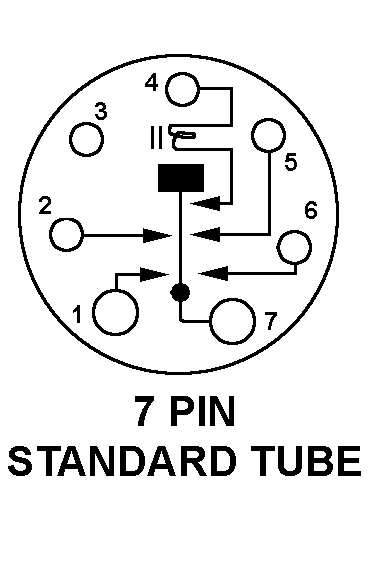

7 PIN STANDARD TUBE
Cross Reference | NSN 6130-00-148-8784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D424-112 | 72314 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
| G65P5014-1 | 94033 | CARDWELL CONDENSER CORPLAPOINTE-ADMIRAL DIV |
| 406675 | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| V6675 | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| 537801-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| L222781-1 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
| 3H6691-28 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 6130-00-148-8784
| Characteristic | Specifications |
|---|---|
| INPUT VOLTAGE RATING | A26.5 DC VOLTS |
| INPUT CURRENT RATING | 5.0 AMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| OUTPUT FREQUENCY RATING | 100.0 HERTZ NOMINAL |
| REED TYPE | CN ANY ACCEPTABLE |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| OVERALL DIAMETER | 1.516 INCHES NOMINAL |
| OVERALL LENGTH | 3.438 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |
| BASE CONNECTION WIRING STYLE | 7 PIN STANDARD TUBE |
