NSN 6130-00-136-0272
Part Details | INTERRUPTER VIBRATOR
6130-00-136-0272 An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Alternate Parts: G1601, 1119967, 1-119967, 6130-00-136-0272, 00-136-0272, 6130001360272, 001360272
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | JAN 15, 1969 | 00-136-0272 | 00743 ( VIBRATOR, INTERRUPTER ) |
REFERENCE DRAWINGS & PICTURES

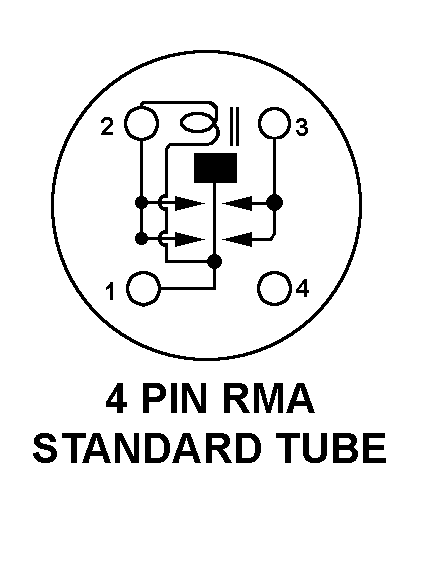

4 PIN STANDARD TUBE
Cross Reference | NSN 6130-00-136-0272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G1601 | 76149 | GRACE W R AND COMALLORY ELECTRIC CORP DIV |
| 1-119967 | 55026 | SIMPSON ELECTRIC COMPANY |
Technical Data | NSN 6130-00-136-0272
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | MR ANY ACCEPTABLE |
| INPUT VOLTAGE RATING | B10.0 DC VOLTS AND C15.0 DC VOLTS |
| INPUT CURRENT RATING | 3.0 AMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | EQUAL |
| DRIVE FREQUENCY RATING | 115.0 HERTZ NOMINAL |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | EQUAL |
| OUTPUT CURRENT RATING | 3.0 AMPERES NOMINAL |
| REED TYPE | CN ANY ACCEPTABLE |
| CONTACT ARRANGEMENT | ANY ACCEPTABLE |
| CONTACT OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| CONTACT VOLTAGE RATING | A12.6 DC VOLTS |
| CONTACT CURRENT RATING | 300.0 MILLIAMPERES NOMINAL |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| CASE MATERIAL | METAL |
| TERMINAL QUANTITY | 4 |
| TERMINAL TYPE | PIN |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.625 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | PROVIDED |
| BASE TYPE | STANDARD BASE |
| BASE CONNECTION WIRING STYLE | 4 PIN STANDARD TUBE |
| COIL TYPE | ISOLATED |
| CONNECTION LOCATION | TOP |
