NSN 5999-00-138-1522
Part Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-138-1522 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Alternate Parts: 332643410, 3326434-10, 583R253H01, CX20, CX-20, 17340003, 17340-003, 640119P2, 302200, 302-200, 300200, 300-200, 5M2156003, 5M2156-003, B57L00203, B57L0020-3, 3255141, 325514-1, 7108268003, 7108268-003, 332643410, 3326434-10, C200039472, B57L00203, B57L0020-3, B57L00203, B57L0020-3, M2706, M270-6, 10139363, GP820BE1, 302200, 302-200, S235A2023, S235A202-3, 115038555, 11503855-5, 10275899, 5999-00-138-1522, 00-138-1522, 5999001381522, 001381522
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 23, 1971 | 00-138-1522 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

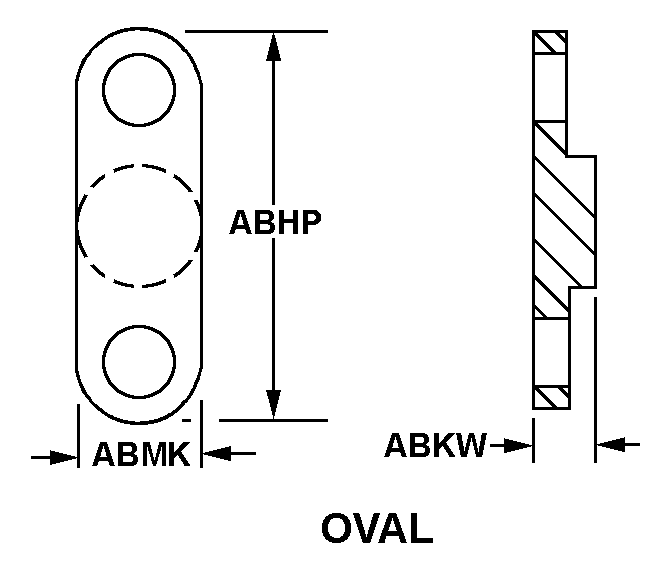

OVAL

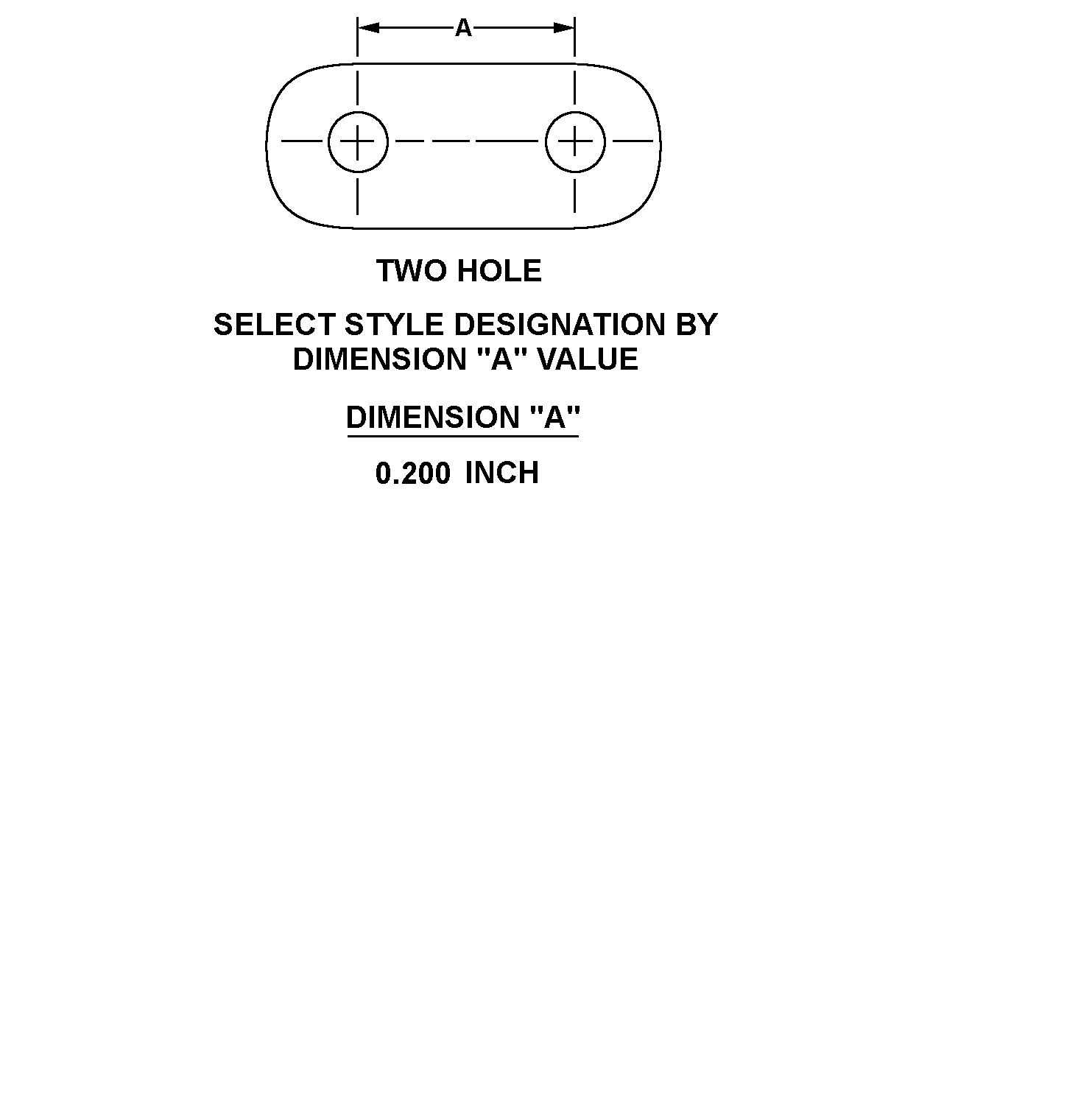

TWO HOLE - 0.200 INCH
Cross Reference | NSN 5999-00-138-1522
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3326434-10 | 77068 | ALLIED-SIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 583R253H01 | 53174 | APX PLASTICS, INC. |
| CX-20 | 53174 | APX PLASTICS, INC. |
| 17340-003 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
| 640119P2 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 302-200 | 32559 | BIVAR INC |
| 300-200 | 32559 | BIVAR INC |
| 5M2156-003 | 76301 | BOEING COMPANY, THEDBA BOEING |
| B57L0020-3 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 325514-1 | 06509 | ENGINEERED MAGNETICS, INC.DBA AAP DIVISION |
| 7108268-003 | 93322 | GE AVIATION SYSTEMS LLCDBA GE AVIATION |
| 3326434-10 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| C200039472 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
| B57L0020-3 | 19133 | MCDONNELL DOUGLAS CORPMCDONNELL DOUGLAS AEROSPACE |
| B57L0020-3 | 12464 | MCDONNELL DOUGLAS CORPMCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
| M270-6 | 54418 | MILTOPE CORPORATION |
| 10139363 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
| GP820BE1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 302-200 | 92219 | TATTNALL COUNTY OFDBA TATTNALL COUNTY SHERIFFS OFFICE |
| S235A202-3 | 78711 | TELEPHONICS CORPORATIONDBA COMMUNICATIONS SYSTEMS DIVISION |
| 11503855-5 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10275899 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5999-00-138-1522
| Characteristic | Specifications |
|---|---|
| BODY STYLE | OVAL |
| OVERALL LENGTH | 0.290 INCHES NOMINAL |
| OVERALL HEIGHT | 0.045 INCHES NOMINAL |
| OVERALL WIDTH | 0.090 INCHES NOMINAL |
| COLOR | NATURAL |
| MATERIAL | PLASTIC POLYAMIDE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,COMPOSITION A,TYPE 1 MIL SPEC SINGLE MATERIAL RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | TWO HOLE - 0.200 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 1 |
