NSN 5999-00-122-6085
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-122-6085 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: BUWEPSDWG2548349, 2548349, 5999-00-122-6085, 00-122-6085, 5999001226085, 001226085
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 30, 1968 | 00-122-6085 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

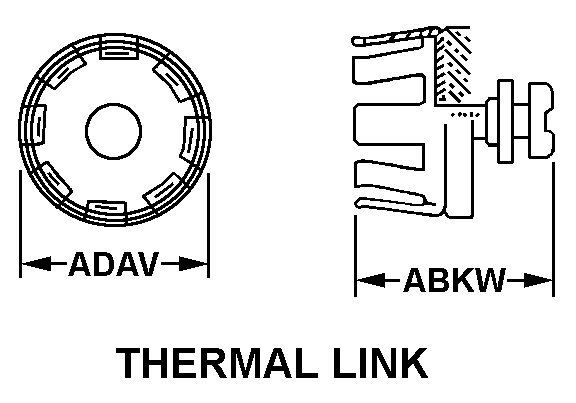

THERMAL LINK
Cross Reference | NSN 5999-00-122-6085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BUWEPSDWG2548349 | 36090 | LOCKHEED MARTIN LIBRASCOPECORP |
| 2548349 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5999-00-122-6085
| Characteristic | Specifications |
|---|---|
| BODY STYLE | THERMAL LINK |
| OVERALL DIAMETER | 0.370 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE |
| END ITEM IDENTIFICATION | MK85MOD0,CONSOLE,FIRING |
