NSN 5999-00-102-6169
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-102-6169 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 90161G3U6, 9016-1G3U6, 90161G3U6, 9016-1G3U6, 5999-00-102-6169, 00-102-6169, 5999001026169, 001026169
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 29, 1968 | 00-102-6169 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |

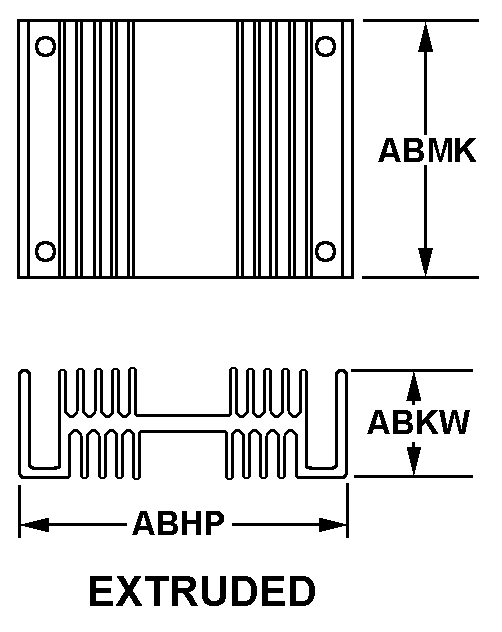

REFERENCE DRAWINGS & PICTURES
EXTRUDED
Cross Reference | NSN 5999-00-102-6169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9016-1G3U6 | 91506 | AUGAT INC |
| 9016-1G3U6 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5999-00-102-6169
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRUDED |
| OVERALL LENGTH | 4.031 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.281 INCHES MAXIMUM |
| OVERALL WIDTH | 1.470 INCHES MINIMUM AND 1.530 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625A MIL SPEC SINGLE TREATMENT RESPONSE |
