NSN 5999-00-067-9011
Part Details | DELAY LINE
5999-00-067-9011 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Alternate Parts: 128C243H01, 5999-00-067-9011, 00-067-9011, 5999000679011, 000679011
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 29, 1967 | 00-067-9011 | 06373 ( DELAY LINE ) |
REFERENCE DRAWINGS & PICTURES

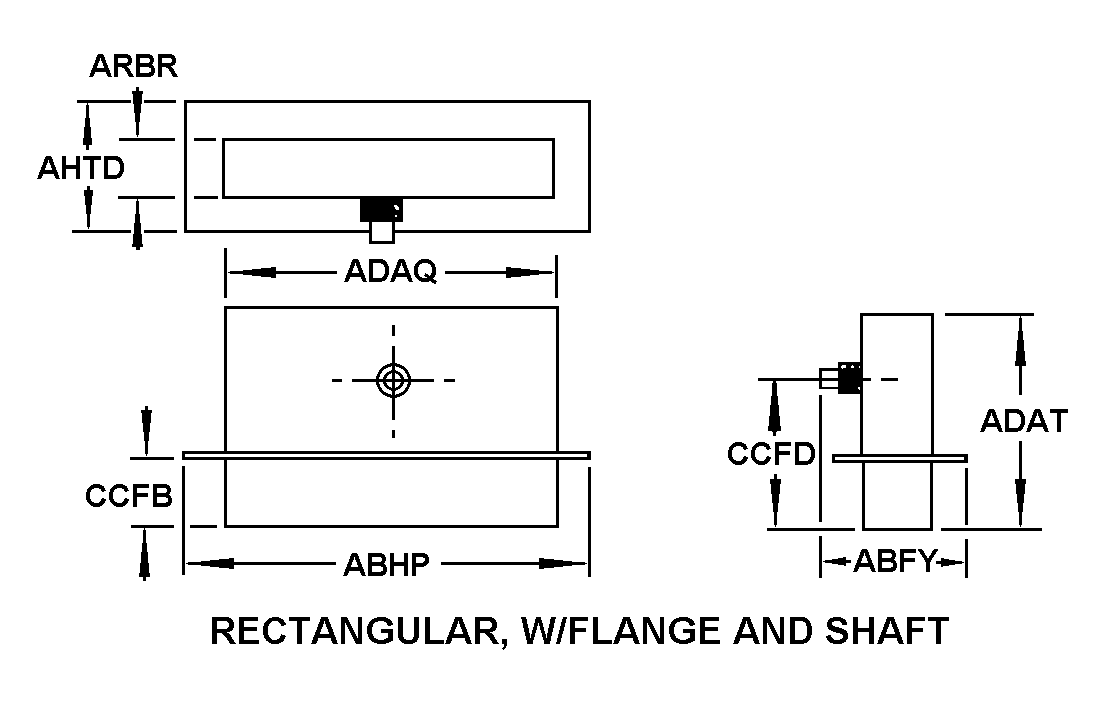

RECTANGULAR, W/FLANGE AND SHAFT

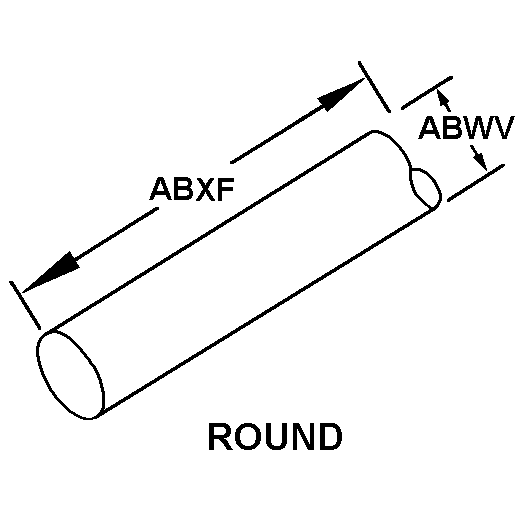

ROUND
FOUR POSITION RECTANGULAR
Cross Reference | NSN 5999-00-067-9011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128C243H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5999-00-067-9011
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | CN20.000 MICROSECONDS NOMINAL |
| INPUT IMPEDANCE RATING | 1.000 KILOHMS |
| OUTPUT IMPEDANCE RATING | 1.000 KILOHMS |
| ATTENUATION IN DECIBELS | 3.000 |
| PULSE RISE TIME RATING | 50.0 NANOSECONDS |
| FREQUENCY BANDWIDTH | 720.0 KILOHERTZ NOMINAL |
| ADJUSTMENT DEVICE DRIVE TYPE | SHAFT |
| ADJUSTMENT DEVICE QUANTITY | 1 |
| SHAFT STYLE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.500 INCHES NOMINAL |
| BODY STYLE | RECTANGULAR, W/FLANGE AND SHAFT |
| OVERALL DEPTH | 8.500 INCHES NOMINAL |
| OVERALL LENGTH | 6.470 INCHES NOMINAL |
| BODY LENGTH | 5.000 INCHES NOMINAL |
| BODY WIDTH | 2.250 INCHES NOMINAL |
| FLANGE DEPTH | 8.687 INCHES NOMINAL |
| BODY DEPTH | 8.000 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO BOTTOM OF BODY | 0.060 INCHES NOMINAL |
| DISTANCE FROM END OF BODY TO CENTER OF SHAFT | 0.380 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF SHAFT | 1.120 INCHES NOMINAL |
| MATERIAL AND LOCATION | ANY ACCEPTABLE OVERALL |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE OVERALL |
| TERMINAL TYPE AND QUANTITY | 2 COAXIAL RECEPTACLE |
| MOUNTING FACILITY | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| HOLE DIAMETER | 0.172 INCHES NOMINAL |
| MOUNTING PROVISION ARRANGEMENT STYLE | FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 5.470 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 7.000 INCHES NOMINAL |
| SPECIAL FEATURES | TWO ADJUSTMENT CONTROLS W/SHAFTS FIRST ADJUSTMENT HAS 10STEPS EACH STEP RATED AT 500 NANOSECONDS SECOND ADJUSTMENT HAS3 STEPS EACH STEP RATED AT 5 MICROSECONDS |
| TEST DATA DOCUMENT | 89661-128243 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| FSC APPLICATION DATA | RADAR NONAIRBORNE EXCEPT FIRE CONTROL AND GUIDED MISSILE |
