NSN 5975-00-280-7935
Part Details | STUFFING TUBE PACKING NUT
5975-00-280-7935 A threaded or unthreaded device, with an unthreaded center hole to accommodate an electrical cable or tube, designed to mate with the threads or sealing components of a stuffing tube body for the purpose of compressing packing around the electrical cable or tube. A component of a STUFFING TUBE.
Alternate Parts: 9000S620273902REV2PC2, 9000S6202-73902REV2PC2, 5975-00-280-7935, 00-280-7935, 5975002807935, 002807935
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-7935 | 15324 ( PACKING NUT, STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

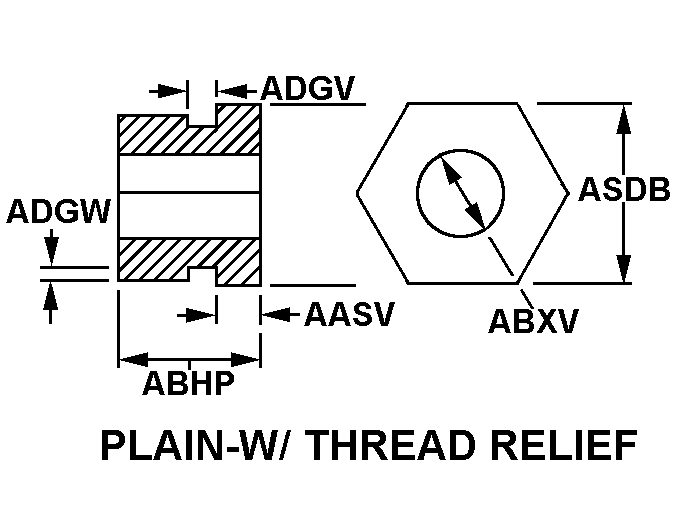

PLAIN-W/THREAD RELIEF
Cross Reference | NSN 5975-00-280-7935
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202-73902REV2PC2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-280-7935
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN-W/THREAD RELIEF |
| WIDTH ACROSS FLATS | 1.031 INCHES NOMINAL |
| HEAD LENGTH | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 0.625 INCHES NOMINAL |
| BORE DIAMETER | 0.702 INCHES MINIMUM AND 0.712 INCHES MAXIMUM |
| THREAD RELIEF LENGTH | 0.188 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.938 INCHES |
| THREAD CLASS | 1A |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | SIZE A |
