NSN 5975-00-280-3824
Part Details | ELECTRICAL CONDUIT FERRULE-NUT COUPLING
5975-00-280-3824 An item consisting of a FERRULE, ELECTRICAL CONDUIT upon which is permanently mounted a NUT, COUPLING, ELECTRICAL CONDUIT. It is designed to be attached to an electrical conduit and used to mechanically connect the conduit to another conduit fitting such as a box connector. Excludes BOX CONNECTOR, ELECTRICAL; ADAPTER, ELECTRICAL CONDUIT; and COUPLING, ELECTRICAL CONDUIT.
Alternate Parts: A25834, 5975-00-280-3824, 00-280-3824, 5975002803824, 002803824
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-3824 | 17229 ( FERRULE-NUT COUPLING, ELECTRICAL CONDUIT ) |
REFERENCE DRAWINGS & PICTURES

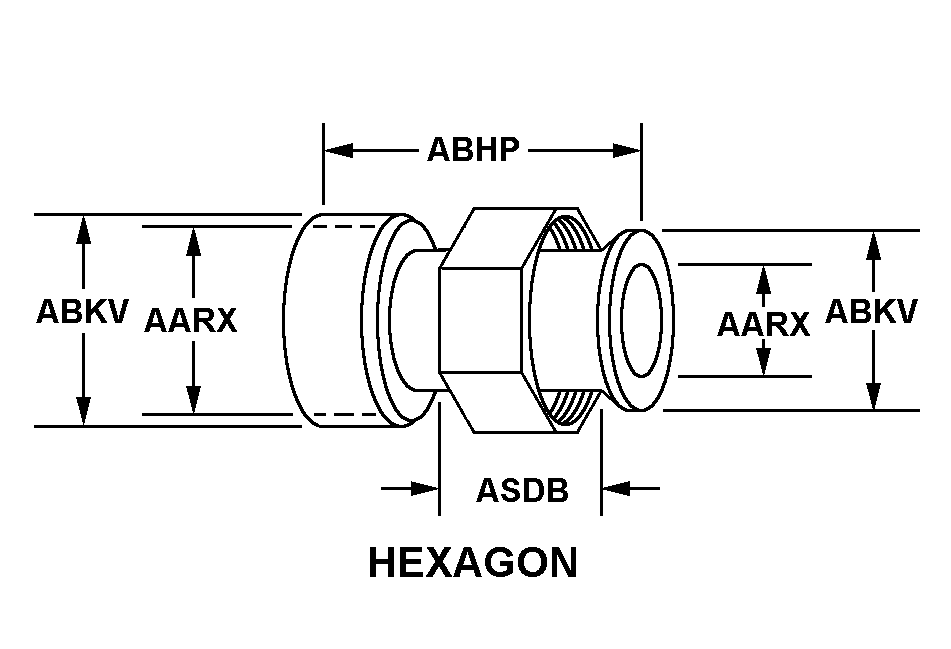

HEXAGON
Cross Reference | NSN 5975-00-280-3824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A25834 | 55176 | AIR PARTS & SUPPLY CO.DBA APSCO AIR PARTS & SUPPLY COMPANY |
Technical Data | NSN 5975-00-280-3824
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEXAGON |
| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
| MATERIAL | BRASS |
| SURFACE TREATMENT | NICKEL |
| FERRULE CONNECTION METHOD | SOLDERED TO CONDUIT |
| FERRULE CONTACT SURFACE SHAPE | FLAT |
