NSN 5975-00-280-3570
Part Details | ELECTRICAL EQUIPMENT RACK
5975-00-280-3570 An open or inclosed frame structure designed to accommodate (but does not include) electrical/electronic equipment mounted on standard width panels so that the equipment may be operated after installation without being removed. It must have panel mounting rails that provide a uniform pattern of mounting holes that will accommodate various combinations of standard width panels. It may include wires, cables, terminal boards, connectors, and the like, required for equipment operation. See also MOUNTING BASE, ELECTRICAL EQUIPMENT; CABINET, ELECTRICAL EQUIPMENT; and CASE (2) (as modified). Excludes MAIN DISTRIBUTING FRAME, TELEPHONE and INTERMEDIATE DISTRIBUTING FRAME, TELEPHONE.
Alternate Parts: TR3220, 9002668, 9002-668, 5975-00-280-3570, 00-280-3570, 5975002803570, 002803570
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-3570 | 06353 ( RACK, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES
ANGLE

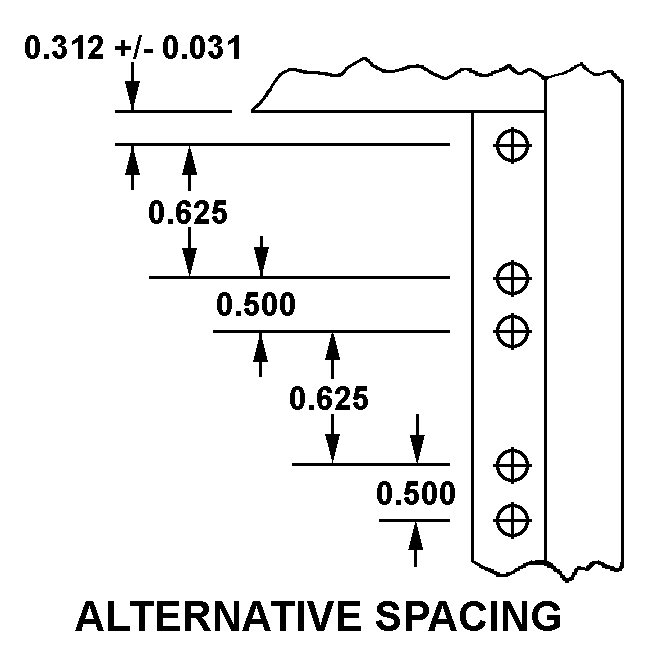

ALTERNATIVE SPACING
OPEN FRAME VERTICAL FRONT
Cross Reference | NSN 5975-00-280-3570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TR3220 | 74156 | ANGO ELECTRONICS CORPORATIONDBA PAR METAL PRODUCTS |
| 9002-668 | 62989 | XY RESOURCES INCDBA TELECOM INSTALLATION DIV |
Technical Data | NSN 5975-00-280-3570
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 7 OPEN FRAME VERTICAL FRONT |
| OVERALL DEPTH | 12.000 INCHES NOMINAL |
| OVERALL HEIGHT | 31.000 INCHES NOMINAL |
| OVERALL WIDTH | 21.000 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 28.000 INCHES NOMINAL |
| PANEL RAIL THICKNESS | 0.109 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| COLOR | BLACK |
| PANEL WIDTH ACCOMMODATED | 19.000 INCHES NOMINAL |
| PANEL MOUNTING RAIL DESIGN STYLE | ANGLE |
| PANEL MOUNTING RAIL HOLE ARRANGEMENT STYLE | ALTERNATIVE SPACING |
