NSN 5975-00-269-1091
Part Details | ELECTRICAL CONDUIT FERRULE
5975-00-269-1091 An item usually of one piece construction, but which may be comprised of more than one piece, designed to be affixed permanently or temporarily to the end of an electrical conduit to form an end fitting. Unflanged items form a permanent end fitting which affords mechanical protection to emerging conductors. Flanged items are used with another fitting normally a conduit coupling nut, to make the conduit adaptable for connection to an electrical connector, junction box or other conduit accessory or fitting. Excludes RING, ELECTRICAL BONDING; BUSHING, ELECTRICAL CONDUIT; and BUSHING, PLAIN SLEEVE. See also FERRULE-NUT COUPLING, ELECTRICAL CONDUIT.
Alternate Parts: LS9628, LS962-8, LS9628, LS962-8, LS9625, LS962-5, LS9628, LS962-8, 5975-00-269-1091, 00-269-1091, 5975002691091, 002691091
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-269-1091 | 08089 ( FERRULE, ELECTRICAL CONDUIT ) |
REFERENCE DRAWINGS & PICTURES

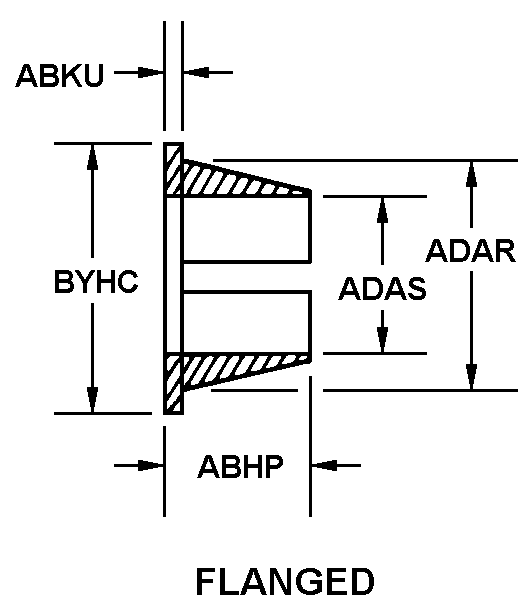

FLANGED
Cross Reference | NSN 5975-00-269-1091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS962-8 | 17772 | AERO ENGINEERING & MANUFACTURINGCOMPANY OF CALIFORNIA |
| LS962-8 | 31068 | DUTCH VALLEY SUPPLY CO. |
| LS962-5 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| LS962-8 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5975-00-269-1091
| Characteristic | Specifications |
|---|---|
| DUCT TYPE FOR WHICH DESIGNED | FLEXIBLE METALLIC CONDUIT |
| DUCT NOMINAL DIAMETER | 0.500 INCHES |
| STYLE DESIGNATOR | FLANGED |
| FLANGE OVERALL DIAMETER | 0.807 INCHES NOMINAL |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.669 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.510 INCHES NOMINAL |
| FLANGE THICKNESS | 0.055 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| CONNECTION METHOD | SOLDER |
