NSN 5975-00-267-2768
Part Details | FANNING STRIP
5975-00-267-2768 An item made of rigid or semirigid insulating material for spacing or separating wire(s) and/or cable(s). For items having terminals, see TERMINAL BOARD; and INSULATOR (as modified).
Alternate Parts: 102B, 102B, 102B, 5975-00-267-2768, 00-267-2768, 5975002672768, 002672768
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-267-2768 | 00408 ( FANNING STRIP ) |

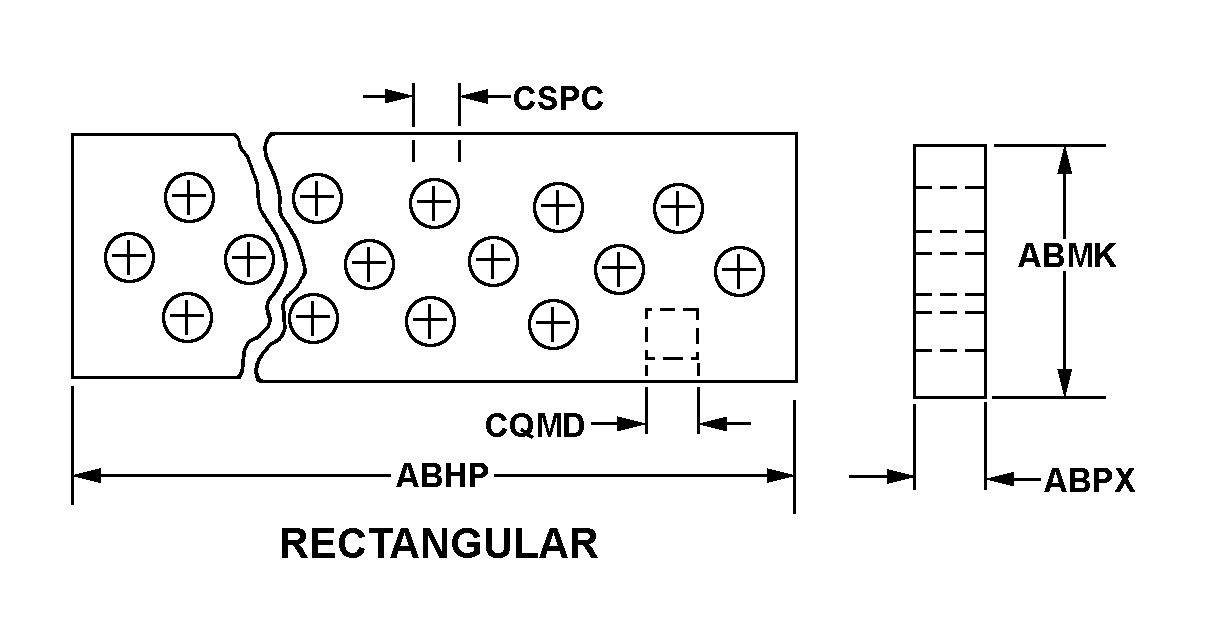

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5975-00-267-2768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102B | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 102B | 70408 | AT AND T CORP |
| 102B | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
Technical Data | NSN 5975-00-267-2768
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR |
| OVERALL LENGTH | 9.625 INCHES NOMINAL |
| OVERALL WIDTH | 2.719 INCHES NOMINAL |
| MATERIAL THICKNESS | 1.875 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.375 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING METHOD | BRACKET |
| MOUNTING DEVICE QUANTITY | 2 |
| CONDUCTOR ACCOMMODATION QUANTITY | 11 |
| FLEXIBILITY | RIGID |
| SPECIAL FEATURES | INCLUDES SHEET METAL MTG BRACKET AND UNATTACHED FIBER FANNING STRIP WITH TWENTY-TWO SLOTTED WIRE OPENINGS |
