NSN 5975-00-266-2018
Part Details | ELECTRICAL CONDUIT FERRULE
5975-00-266-2018 An item usually of one piece construction, but which may be comprised of more than one piece, designed to be affixed permanently or temporarily to the end of an electrical conduit to form an end fitting. Unflanged items form a permanent end fitting which affords mechanical protection to emerging conductors. Flanged items are used with another fitting normally a conduit coupling nut, to make the conduit adaptable for connection to an electrical connector, junction box or other conduit accessory or fitting. Excludes RING, ELECTRICAL BONDING; BUSHING, ELECTRICAL CONDUIT; and BUSHING, PLAIN SLEEVE. See also FERRULE-NUT COUPLING, ELECTRICAL CONDUIT.
Alternate Parts: 21250P, 2-1250P, 21250P, 2-1250P, 5975-00-266-2018, 00-266-2018, 5975002662018, 002662018
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-266-2018 | 08089 ( FERRULE, ELECTRICAL CONDUIT ) |

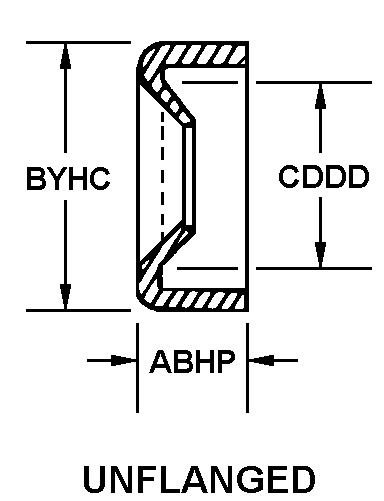

REFERENCE DRAWINGS & PICTURES
UNFLANGED
Cross Reference | NSN 5975-00-266-2018
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-1250P | 08484 | BREEZE-EASTERN LLC |
| 2-1250P | 30463 | DCX-CHOL ENTERPRISES, INC.DBA ELECSYS DIVISION OF DCX-CHOL |
Technical Data | NSN 5975-00-266-2018
| Characteristic | Specifications |
|---|---|
| DUCT TYPE FOR WHICH DESIGNED | FLEXIBLE METALLIC CONDUIT |
| DUCT NOMINAL DIAMETER | 1.250 INCHES |
| STYLE DESIGNATOR | UNFLANGED |
| FLANGE OVERALL DIAMETER | 1.522 INCHES NOMINAL |
| OVERALL LENGTH | 0.625 INCHES NOMINAL |
| SMALL END INSIDE DIAMETER | 1.250 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| CONNECTION METHOD | SWAGE |
