NSN 5975-00-256-9436
Part Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5975-00-256-9436 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Alternate Parts: 0N047119, 5975-00-256-9436, 00-256-9436, 5975002569436, 002569436
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 24, 1971 | 00-256-9436 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

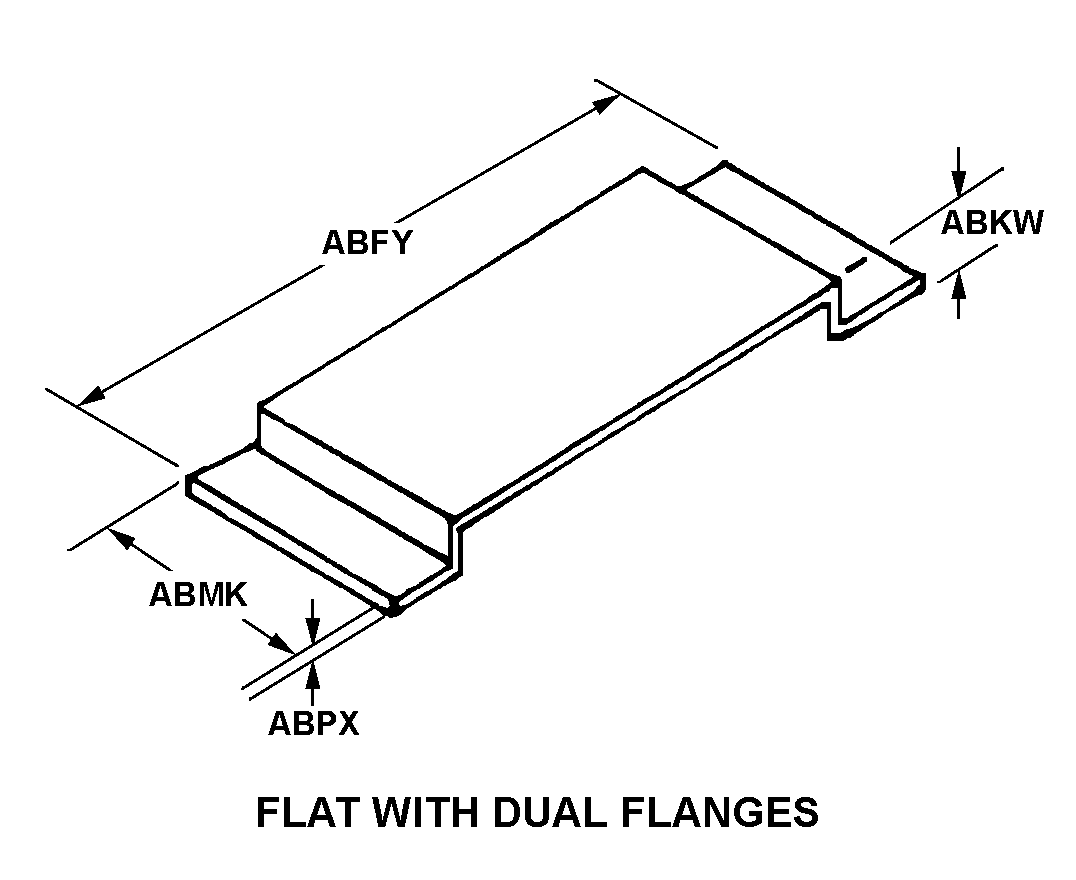

FLAT WITH DUAL FLANGES
Cross Reference | NSN 5975-00-256-9436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N047119 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5975-00-256-9436
| Characteristic | Specifications |
|---|---|
| DESIGN FEATURE | PUNCHED HOLES |
| MATERIAL | ALUMINUM ALLOY 6061 |
| STYLE DESIGNATOR | FLAT WITH DUAL FLANGES |
| OVERALL DEPTH | 5.416 INCHES NOMINAL |
| OVERALL HEIGHT | 9.760 INCHES NOMINAL |
| OVERALL WIDTH | 4.332 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.117 INCHES AND 0.312 INCHES |
| MOUNTING HOLE QUANTITY | A12$$A12 |
| END ITEM IDENTIFICATION | KG-33A;CJF |
