NSN 5975-00-255-2105
Part Details | STUFFING TUBE ADAPTER
5975-00-255-2105 A threaded or unthreaded item designed to mate with the mounting threads or mounting surfaces of a STUFFING TUBE, and to mount the STUFFING TUBE to a continuous structure (bulkhead or deck). The adapter may be recessed on the face to accommodate a gasket and/or washer.
Alternate Parts: M19622150001, M19622-15-0001, 5975-00-255-2105, 00-255-2105, 5975002552105, 002552105
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 20, 1973 | 00-255-2105 | 05826 ( ADAPTER, STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

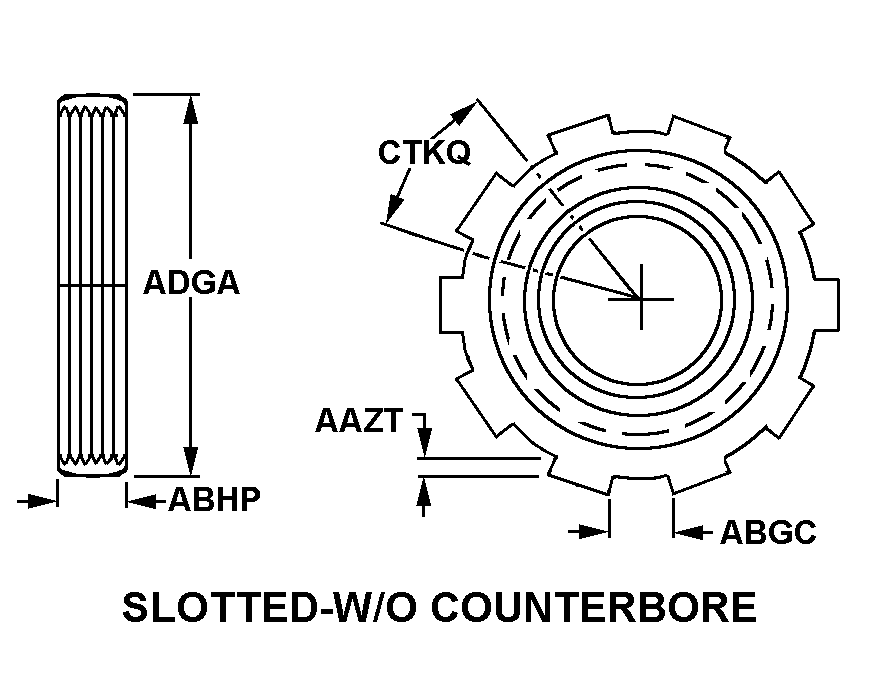

SLOTTED-W/O COUNTERBORE
Cross Reference | NSN 5975-00-255-2105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622-15-0001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5975-00-255-2105
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOTTED-W/O COUNTERBORE |
| INSIDE DIAMETER | 0.794 INCHES NOMINAL |
| SLOT DEPTH | 0.093 INCHES NOMINAL |
| SLOT WIDTH | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| SLOT ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
