NSN 5975-00-248-2003
Part Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5975-00-248-2003 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Alternate Parts: 826823211, 82-682321-1, 5975-00-248-2003, 00-248-2003, 5975002482003, 002482003
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 19, 1969 | 00-248-2003 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

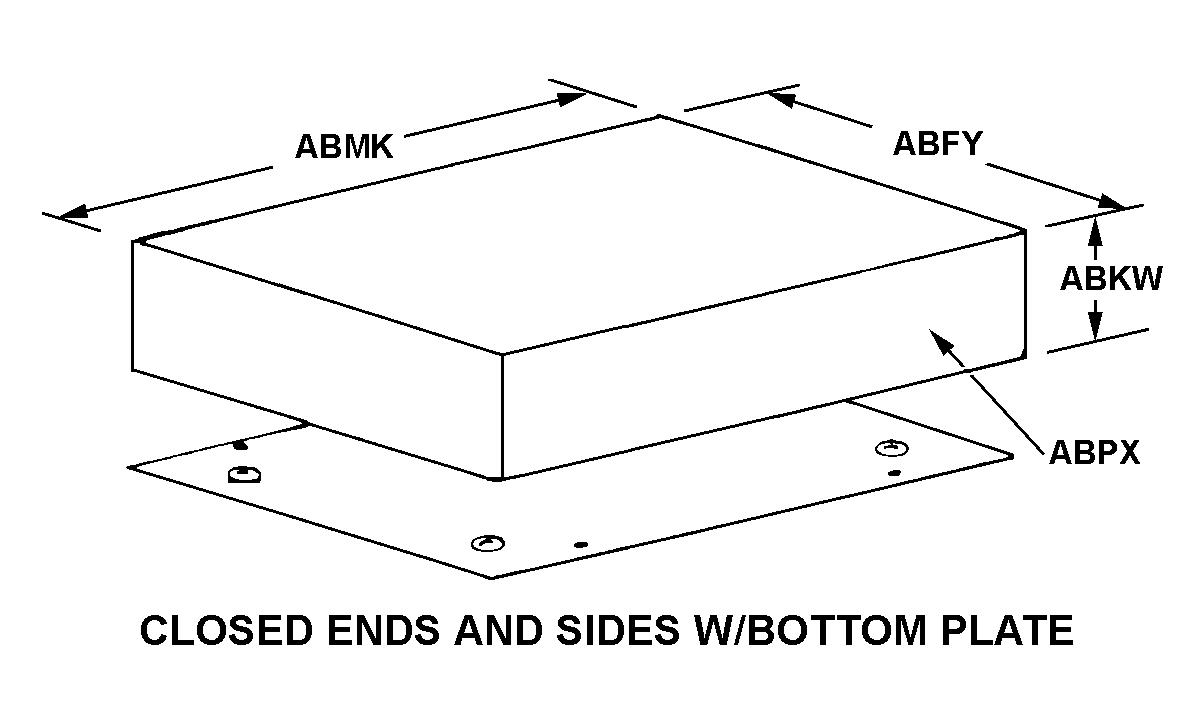

CLOSED ENDS AND SIDES W/BOTTOM PLATE
Cross Reference | NSN 5975-00-248-2003
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 82-682321-1 | 07397 | GENERAL DYNAMICS ADVANCEDINFORMATION SYSTEMS INC. |
Technical Data | NSN 5975-00-248-2003
| Characteristic | Specifications |
|---|---|
| DESIGN FEATURE | PUNCHED HOLES |
| MATERIAL | ALUMINUM |
| STYLE DESIGNATOR | CLOSED ENDS AND SIDES W/BOTTOM PLATE |
| OVERALL DEPTH | 4.470 INCHES MINIMUM AND 4.490 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.330 INCHES NOMINAL |
| OVERALL WIDTH | 3.380 INCHES MINIMUM AND 3.400 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.035 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.172 INCHES |
| MOUNTING HOLE QUANTITY | 4 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 4.010 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 2.900 INCHES |
| SPECIAL FEATURES | TIN PLATED SURFACE TREATMENT |
| FSC APPLICATION DATA | RECEIVER,COUNTERMEASURES |
