NSN 5975-00-243-1275
Part Details | ELECTRICAL WALL PLATE
5975-00-243-1275 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.
Alternate Parts: CATAL0G91071, 91071, WP455, GU91071, 91071, 91071, 91071, HUBBELL NP1, 66457, 66457, 7532464, UL 514C, CATAL0G91071, 91071, 5975-00-243-1275, 00-243-1275, 5975002431275, 002431275
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-243-1275 | 07716 ( PLATE, WALL, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

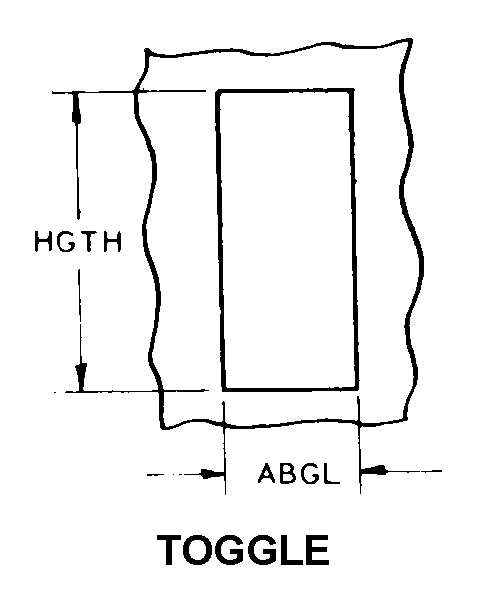

TOGGLE
Cross Reference | NSN 5975-00-243-1275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CATAL0G91071 | 71183 | BRYANT ELECTRIC |
| 91071 | 71183 | BRYANT ELECTRIC |
| WP455 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GU91071 | 73773 | GENERAL ELECTRIC COCONSTRUCTION MATERIALS DIVISION |
| 91071 | 26042 | GRAYBAR ELECTRIC COMPANY, INC. |
| 91071 | 00645 | GRAYBAR ELECTRIC COMPANY, INC. |
| 91071 | 74545 | HUBBELL INCWIRING DEVICE DIV |
| HUBBELL NP1 | 74545 | HUBBELL INCWIRING DEVICE DIV |
| 66457 | 1PQF4 | L3 TECHNOLOGIES, INC.DBA LINK SIMULATION & TRAINING |
| 66457 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 7532464 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| UL 514C | 81345 | UNDERWRITERS LABORATORIES INC. |
| CATAL0G91071 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 91071 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 5975-00-243-1275
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC PHENOLIC |
| UNIT TYPE | TOGGLE SWITCH |
| SURFACE TREATMENT | PAINT |
| COLOR | BROWN |
| GANG QUANTITY | 1 |
| OPENING QUANTITY | 1 |
| OPENING STYLE DESIGNATOR | TOGGLE |
| WIDTH | 0.406 INCHES NOMINAL |
| HEIGHT | 0.925 INCHES NOMINAL |
| INSULATING ADAPTER | NOT INCLUDED |
| COVER | NOT PROVIDED |
| LENGTH | 4.500 INCHES |
| WIDTH | 2.750 INCHES |
| MOUNTING HOLE QUANTITY | 2 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
