NSN 5975-00-241-9698
Part Details | INTERIOR CABLE RACK
5975-00-241-9698 An open frame structure primarily designed to support electrical cables in buildings and shelters. Its purpose is to provide, by itself or by joining to similar structures, a path or runway for cable which may connect two or more pieces of electrical equipment. It does not include items designed to hold a single cable. See also RACK, CABLE, UNDERGROUND; and HANGER, CABLE.
Alternate Parts: A0V9018086, A0V90-1808-6, 5975-00-241-9698, 00-241-9698, 5975002419698, 002419698
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 08, 1971 | 00-241-9698 | 08082 ( RACK, CABLE, INTERIOR ) |
REFERENCE DRAWINGS & PICTURES

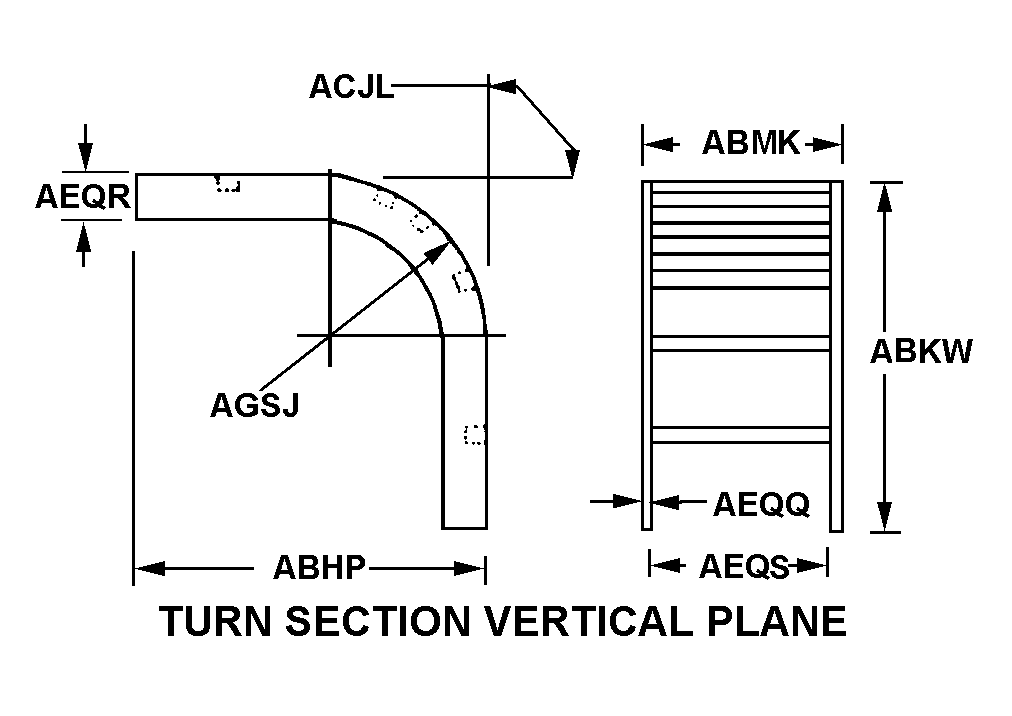

TURN SECTION VERTICAL PLANE
Cross Reference | NSN 5975-00-241-9698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A0V90-1808-6 | 61357 | UNITED STATES GYPSUM CO |
Technical Data | NSN 5975-00-241-9698
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TURN SECTION VERTICAL PLANE |
| BEND ANGLE IN DEG | 90.0 |
| STRINGER THICKNESS | 0.625 INCHES NOMINAL |
| CLEARANCE WIDTH | 18.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| MOUNTING PROVISION | UNTHREADED HOLE |
