NSN 5970-00-193-9878
Part Details | INSULATOR ASSEMBLY
5970-00-193-9878 Two or more insulators on a common mounting or mounted on each other. Do not use for single complete feedthru insulators (double bowl type) which are termed INSULATOR, FEEDTHRU regardless of complexity.
Alternate Parts: 5679053001, 567-9053-001, 5970-00-193-9878, 00-193-9878, 5970001939878, 001939878
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 09, 1970 | 00-193-9878 | 00220 ( INSULATOR ASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

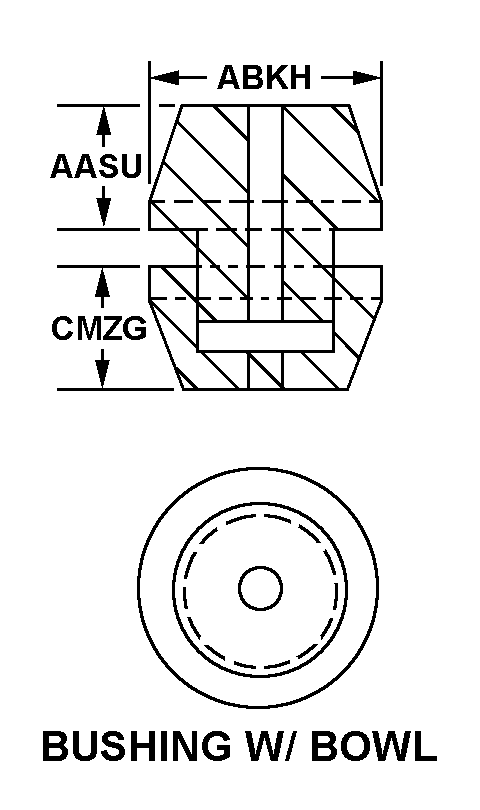

BUSHING W/BOWL
Cross Reference | NSN 5970-00-193-9878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 567-9053-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5970-00-193-9878
| Characteristic | Specifications |
|---|---|
| INSULATOR QUANTITY | 1 |
| STYLE DESIGNATOR | BUSHING W/BOWL |
| CONTROLLING AGENCY | AIRFORCE |
| INSULATOR NAME | BUSHING |
| IDENTIFYING NUMBER | PART NO 567-9053-001 |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| BUSHING DIAMETER | 0.673 INCHES NOMINAL |
| BOWL OVERALL HEIGHT | 0.288 INCHES NOMINAL |
| MOUNTING CONFIGURATION | TWO 0.031 IN MGT HOLES ON 0.375 MGT CENTERS |
