NSN 5970-00-189-8060
Part Details | BEAD INSULATOR
5970-00-189-8060 An insulator specifically designed to be used as a spacer in, or in conjunction with, such items as coaxial cables, transmission lines, brush shunts, test leads, high voltage lines and the like. Has an axial hole through which the wire passes and the length of which is considerably more than 25 percent of the largest diameter perpendicular to the hole. The external shapes may be variations of cylindrical and spherical shapes.
Alternate Parts: W2496, A118763, A11876-3, 3G89, 5970-00-189-8060, 00-189-8060, 5970001898060, 001898060
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-189-8060 | 18299 ( INSULATOR, BEAD ) |

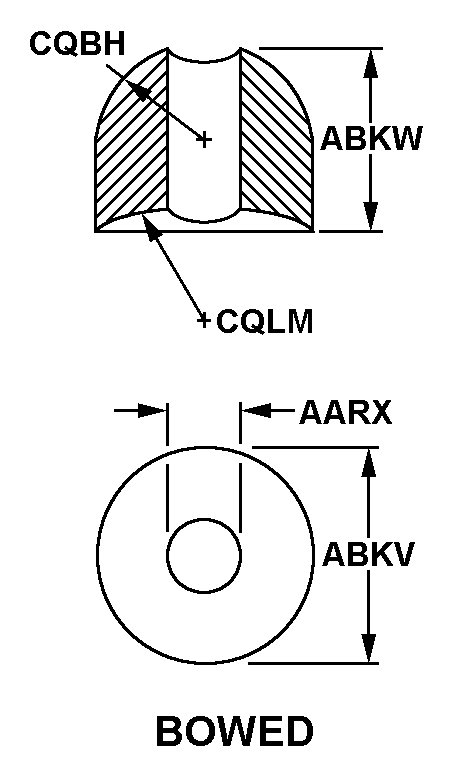

REFERENCE DRAWINGS & PICTURES
BOWED
Cross Reference | NSN 5970-00-189-8060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W2496 | 70371 | ADVANCED TECHNICAL CERAMICS COMPANYDBA ADTECH CERAMICS |
| A11876-3 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 3G89 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5970-00-189-8060
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BOWED |
| INSIDE DIAMETER | 0.068 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.170 INCHES NOMINAL |
| OVERALL HEIGHT | 0.170 INCHES NOMINAL |
| FIRST END RADIUS | 0.085 INCHES NOMINAL |
