NSN 5970-00-189-8059
Part Details | BOWL INSULATOR
5970-00-189-8059 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Alternate Parts: 76591E, 7659-1E, 2C6397AJ3, 5970-00-189-8059, 00-189-8059, 5970001898059, 001898059
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-189-8059 | 18300 ( INSULATOR, BOWL ) |

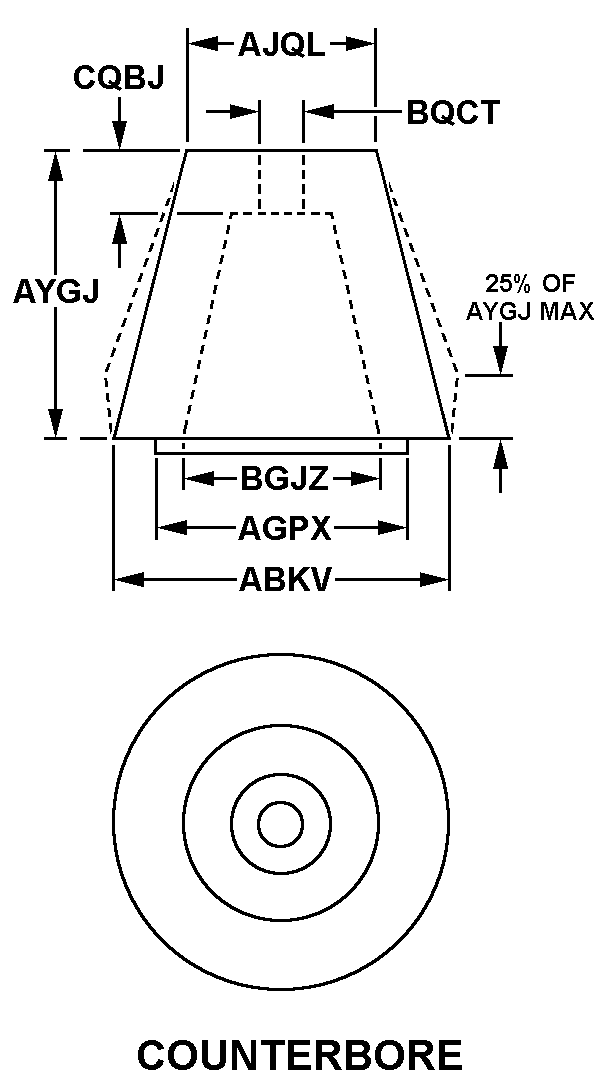

REFERENCE DRAWINGS & PICTURES
COUNTERBORE
Cross Reference | NSN 5970-00-189-8059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7659-1E | 00781 | CESSNA AIRCRAFT COARC AVIONICS DIV |
| 2C6397AJ3 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5970-00-189-8059
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORE |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 0.620 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 0.375 INCHES NOMINAL |
| SHOULDER DEPTH | 0.020 INCHES NOMINAL |
| SPECIAL FEATURES | 0.070 IN.BY 0.020 IN. SLOT IN ONE WALL |
