NSN 5970-00-188-4557
Part Details | SPREADER INSULATOR
5970-00-188-4557 An insulator which is specifically designed to separate or hold apart free swinging electrical conductors.
Alternate Parts: 9181L10, 5970-00-188-4557, 00-188-4557, 5970001884557, 001884557
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-188-4557 | 18290 ( INSULATOR, SPREADER ) |

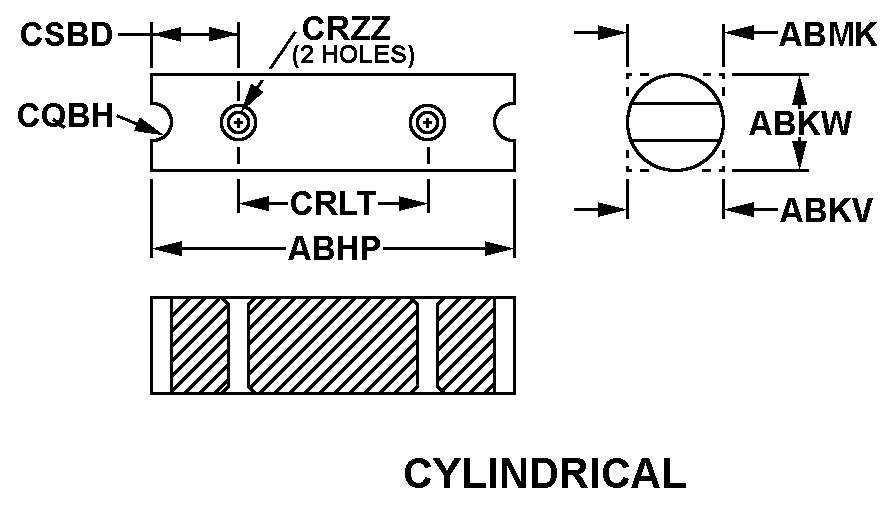

REFERENCE DRAWINGS & PICTURES
CYLINDRICAL
Cross Reference | NSN 5970-00-188-4557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9181L10 | 75539 | LAPP INSULATOR COMPANY LLC |
Technical Data | NSN 5970-00-188-4557
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| FIRST END RADIUS | 0.188 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 8.000 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.375 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 1.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
