NSN 5970-00-186-8898
Part Details | PIN INSULATOR
5970-00-186-8898 An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin.
Alternate Parts: 714935TYPEIN12, 5970-00-186-8898, 00-186-8898, 5970001868898, 001868898
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-186-8898 | 18289 ( INSULATOR, PIN ) |
REFERENCE DRAWINGS & PICTURES

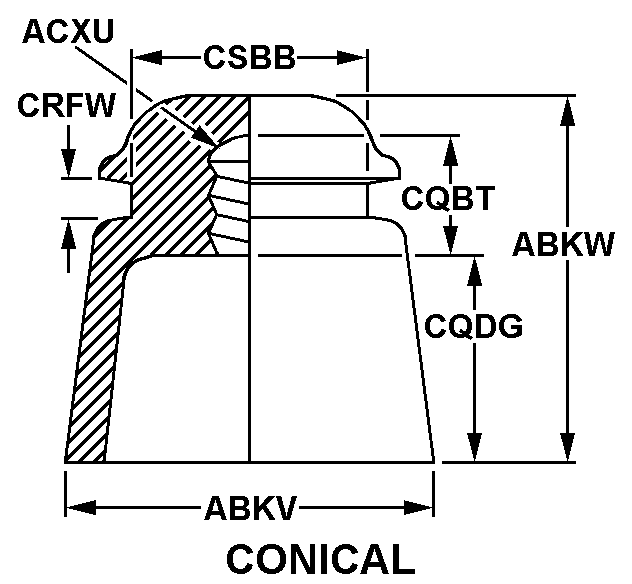

CONICAL
Cross Reference | NSN 5970-00-186-8898
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 714935TYPEIN12 | 81351 | ARMY SPECIFICATIONS |
Technical Data | NSN 5970-00-186-8898
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONICAL |
| OUTSIDE DIAMETER | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.375 INCHES NOMINAL |
| PINHOLE DIAMETER | 1.110 INCHES NOMINAL |
| PIN HOLE DEPTH | 1.562 INCHES NOMINAL |
| SKIRT LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL GLASS |
| CONDUCTOR MECHANICAL ACCOMMODATION QUANTITY | 1 |
