NSN 5970-00-185-0337
Part Details | BUSHING INSULATOR
5970-00-185-0337 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: 23602081, 050599, 5970-00-185-0337, 00-185-0337, 5970001850337, 001850337
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 12, 1971 | 00-185-0337 | 18301 ( INSULATOR, BUSHING ) |

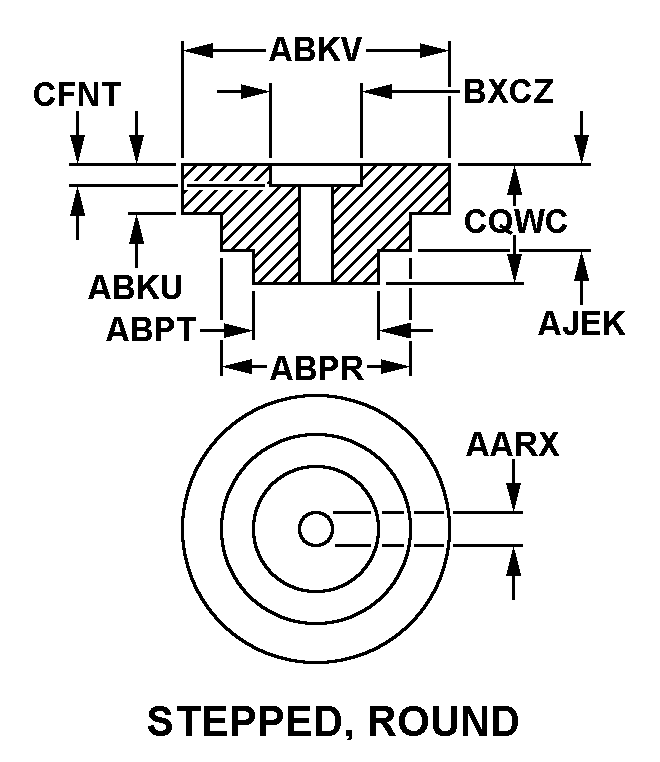

REFERENCE DRAWINGS & PICTURES
STEPPED, ROUND
Cross Reference | NSN 5970-00-185-0337
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23602081 | 92292 | LINDE LLC |
| 050599 | 40608 | MILLER ELECTRIC MFG CO |
Technical Data | NSN 5970-00-185-0337
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEPPED, ROUND |
| INSIDE DIAMETER | 0.812 INCHES NOMINAL |
| FLANGE THICKNESS | 0.031 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.968 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.620 INCHES MINIMUM AND 1.627 INCHES MAXIMUM |
| SECOND STEP DIAMETER | 0.865 INCHES MINIMUM AND 0.872 INCHES MAXIMUM |
| FIRST STEP HEIGHT | 0.180 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 1.249 INCHES MINIMUM AND 1.254 INCHES MAXIMUM |
| FIRST COUNTERBORE DEPTH | 0.094 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| SECOND STEP HEIGHT | 0.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, DELRIN 500, E I DUPONT DE NEMOURS AND CO INC |
| SPECIAL FEATURES | 2 0.188 IN. RADIUS CUTOUTS 136.0 DEG APART ON OD |
