NSN 5970-00-178-1188
Part Details | KNOB INSULATOR
5970-00-178-1188 An insulator of generally cylindrical shape which is designed to be attached to a rigid structure.
Alternate Parts: HHI435, HH-I-435, 5970-00-178-1188, 00-178-1188, 5970001781188, 001781188
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-178-1188 | 18283 ( INSULATOR, KNOB ) |
REFERENCE DRAWINGS & PICTURES

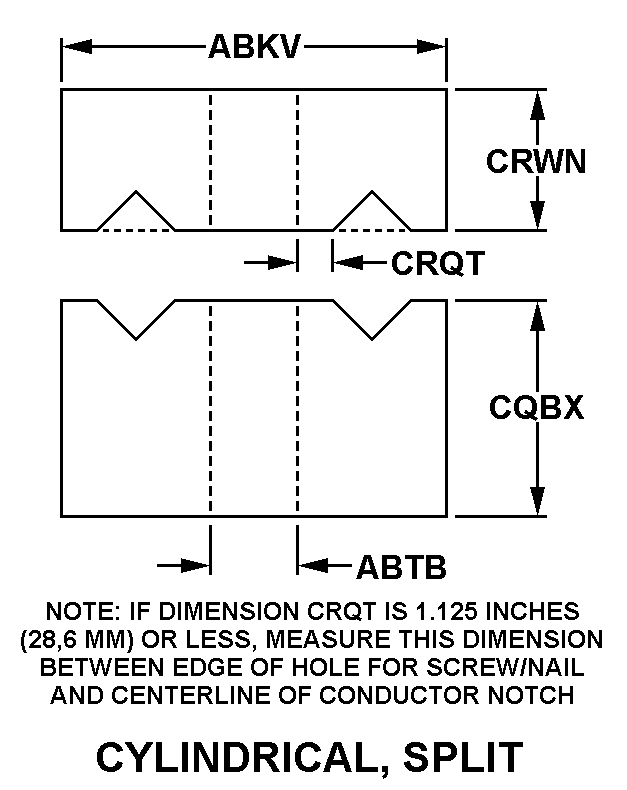

CYLINDRICAL, SPLIT
Cross Reference | NSN 5970-00-178-1188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HH-I-435 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5970-00-178-1188
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL, SPLIT |
| OUTSIDE DIAMETER | 1.500 INCHES MINIMUM |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| SECOND DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 1.250 INCHES NOMINAL |
| DISTANCE BETWEEN CONDUCTOR GROOVE AND MOUNTING HOLE | 0.250 INCHES MINIMUM |
| FIRST DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.688 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND 4 SIZE AND III TYPE |
