NSN 5935-00-065-9803
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-065-9803 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 9328, 93-28, 9328, 93-28, DMS84028B, 5935-00-065-9803, 00-065-9803, 5935000659803, 000659803
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-065-9803 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

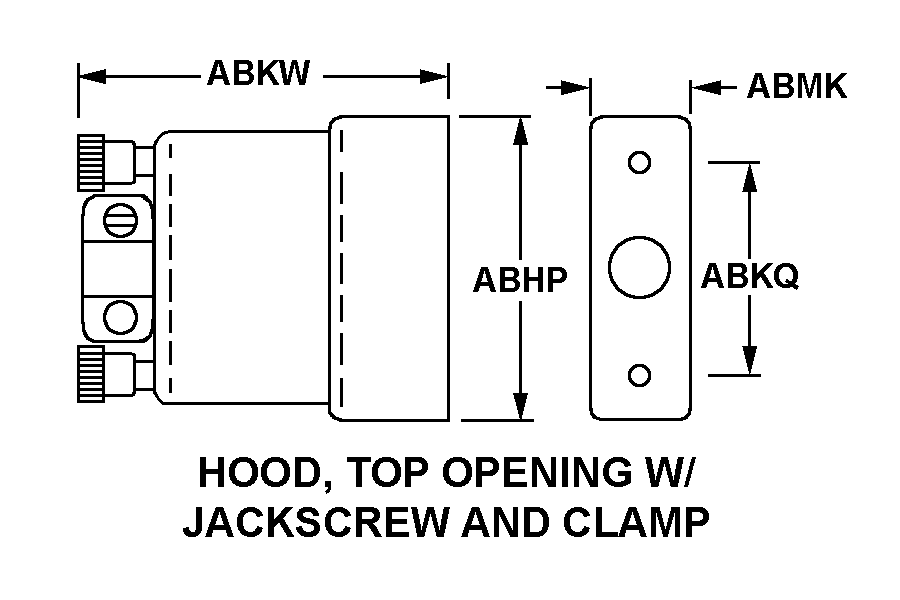

HOOD, TOP OPENING W/JACKSCREW AND CLAMP
Cross Reference | NSN 5935-00-065-9803
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 93-28 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 93-28 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| DMS84028B | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
Technical Data | NSN 5935-00-065-9803
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD, TOP OPENING W/JACKSCREW AND CLAMP |
| OVERALL LENGTH | 2.593 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.281 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 JACKSCREW |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | A2A$$A2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| SIZE DESIGNATION | 50 |
