NSN 5935-00-065-6178
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-065-6178 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1336511011, 133-65-11-011, 5935-00-065-6178, 00-065-6178, 5935000656178, 000656178
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-065-6178 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/METAL TAB
ROUND, W/DOUBLE KEYWAY

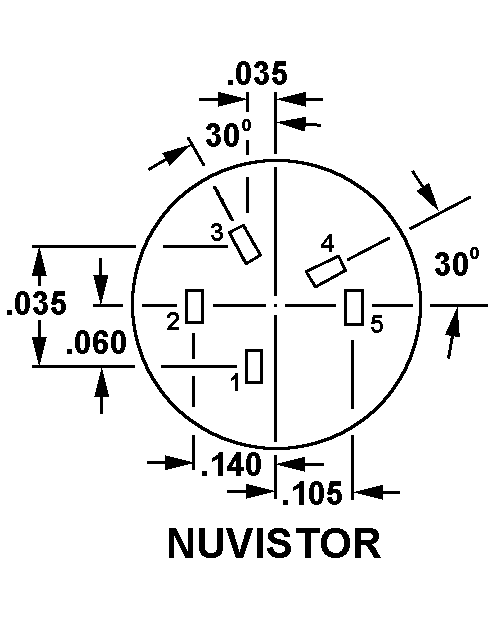

NUVISTOR
Cross Reference | NSN 5935-00-065-6178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 133-65-11-011 | 71785 | CINCH CONNECTORS, INC. |
Technical Data | NSN 5935-00-065-6178
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | NUVISTOR |
| ACCOMMODATED CONTACT QUANTITY | 5 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/METAL TAB |
| OVERALL HEIGHT | 0.462 INCHES NOMINAL |
| OVERALL DIAMETER | 0.562 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.437 INCHES NOMINAL |
| BODY MATERIAL | Y0000 ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 5 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SNAP-IN |
| MOUNTING HOLE STYLE | ROUND, W/DOUBLE KEYWAY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.484 INCHES NOMINAL |
| BUSHING HOLE AND KEYWAY LENGTH | 0.593 INCHES NOMINAL |
| MOUNTING KEYWAY WIDTH | 0.141 INCHES NOMINAL |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.007 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
