NSN 5935-00-065-3478
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-065-3478 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 80581G37, 8058-1G37, GS806AV8A, 80581G37, 8058-1G37, 102444062, 10244406-2, 5935-00-065-3478, 00-065-3478, 5935000653478, 000653478
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 27, 1967 | 00-065-3478 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT, PRESS FIT

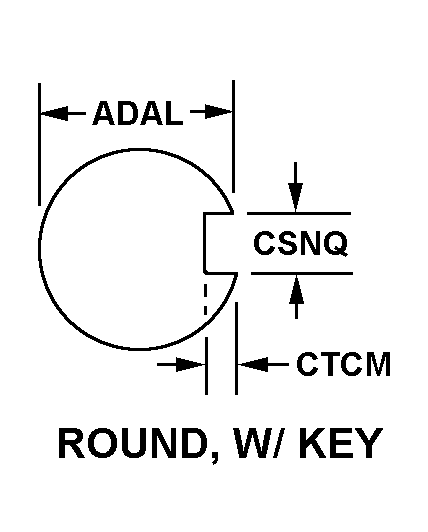

ROUND, W/KEY

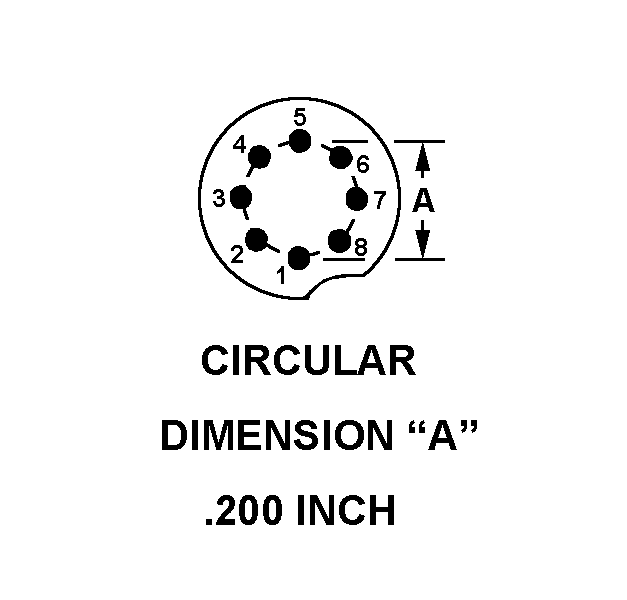

CIRCULAR .200 INCH
Cross Reference | NSN 5935-00-065-3478
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8058-1G37 | 91506 | AUGAT INC |
| GS806AV8A | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 8058-1G37 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 10244406-2 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-065-3478
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR .200 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.109 INCHES NOMINAL |
| OVERALL HEIGHT | 0.350 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.063 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TURRET |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | ROUND, W/KEY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.370 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| MOUNTING KEYWAY WIDTH | 0.062 INCHES NOMINAL |
| MOUNTING KEYWAY LENGTH | 0.050 INCHES NOMINAL |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
