Part Details | ELECTRICAL PLUG CONNECTOR

5935-00-064-5051 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: 9000S620273965REV1, 9000S6202-73965REV1, 5935-00-064-5051, 00-064-5051, 5935000645051, 000645051

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 29, 196700-064-505101938 ( CONNECTOR, PLUG, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

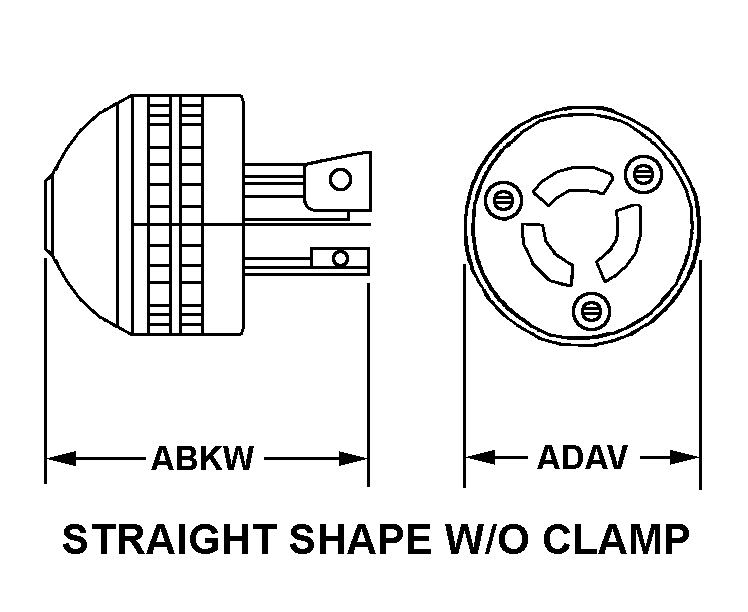

STRAIGHT SHAPE W/O CLAMP

CONNECTOR,PLUG,ELEC | 5935-00-064-5051, 000645051
Cross Reference | NSN 5935-00-064-5051
Part Number Cage Code Manufacturer
9000S6202-73965REV180064NAVAL SHIP SYSTEMS COMMAND
Technical Data | NSN 5935-00-064-5051
Characteristic Specifications
BODY STYLE STRAIGHT SHAPE W/O CLAMP
OVERALL LENGTH7.062 INCHES NOMINAL
OVERALL HEIGHT2.750 INCHES NOMINAL
OVERALL DIAMETER2.625 INCHES NOMINAL
CONNECTOR LOCKING METHOD INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE COUPLING FACILITY
THREAD SERIES DESIGNATOR UNS
NOMINAL THREAD SIZE3.750 INCHES
THREAD CLASS2A
THREAD QUANTITY PER INCH7
THREAD DIRECTION RIGHT-HAND
NOMINAL THREAD LENGTH0.750 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD COMPRESSION NUT
SHELL TYPE SOLID
SHELL MATERIAL COPPER
SHELL SURFACE TREATMENT CADMIUM
POLARIZATION METHOD CONTACT
INSERT POSITION IN DEG180.0
MATING END QUANTITY1
ENVIRONMENTAL PROTECTION WATERTIGHT
