NSN 5935-00-063-5877
Part Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-063-5877 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Alternate Parts: 10350349363, 10-350349-363, 5935-00-063-5877, 00-063-5877, 5935000635877, 000635877
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 27, 1967 | 00-063-5877 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

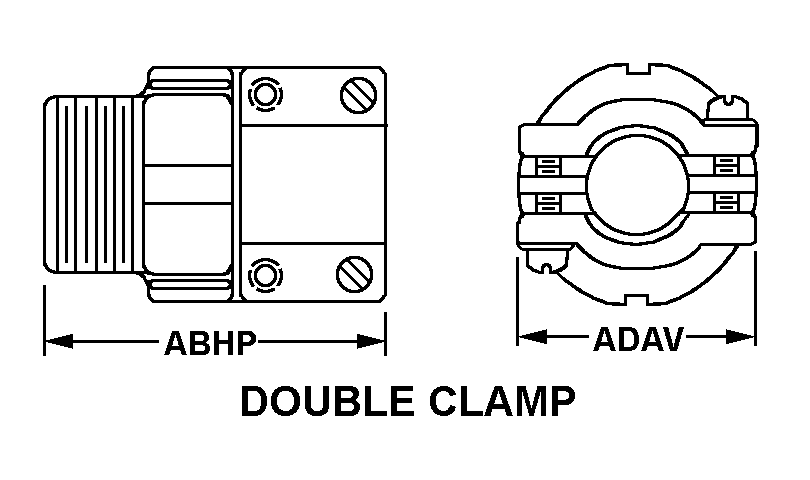

DOUBLE CLAMP
Cross Reference | NSN 5935-00-063-5877
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-350349-363 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
Technical Data | NSN 5935-00-063-5877
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE CLAMP |
| OVERALL LENGTH | 2.031 INCHES NOMINAL |
| OVERALL DIAMETER | 2.344 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND TIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.504 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |
| SIZE DESIGNATION | 36 |
