NSN 5935-00-063-3581
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-063-3581 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: SK630, 1949900089, 5935-00-063-3581, 00-063-3581, 5935000633581, 000633581
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-063-3581 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

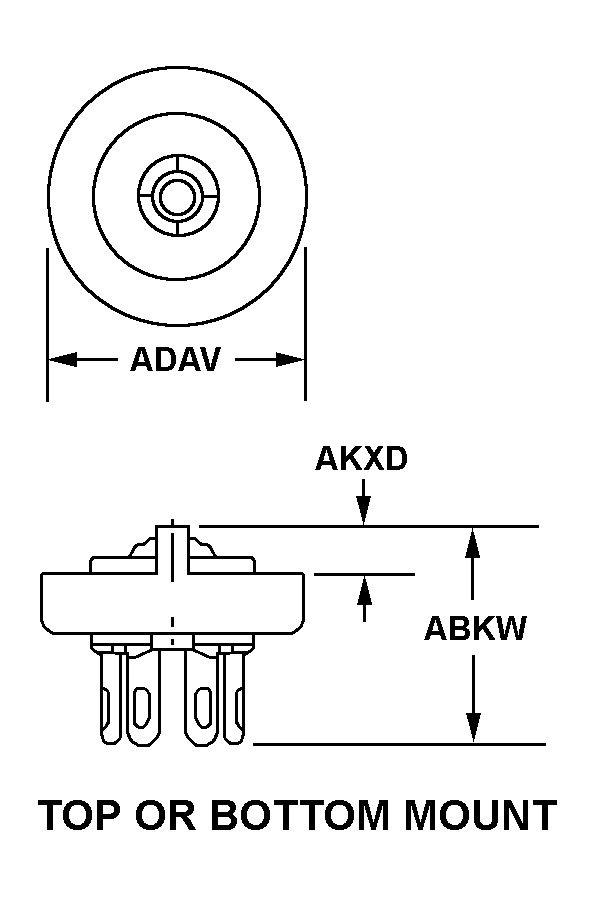

TOP OR BOTTOM MOUNT

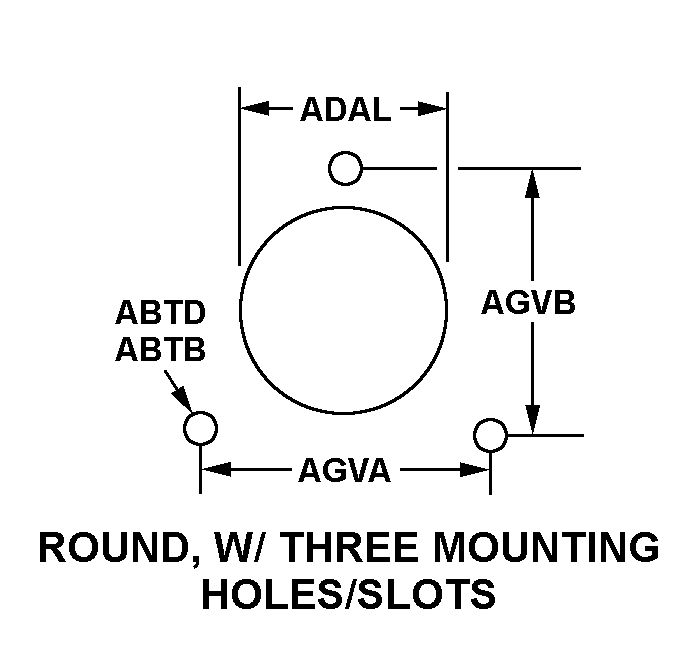

ROUND, W/THREE MOUNTING HOLES/SLOTS

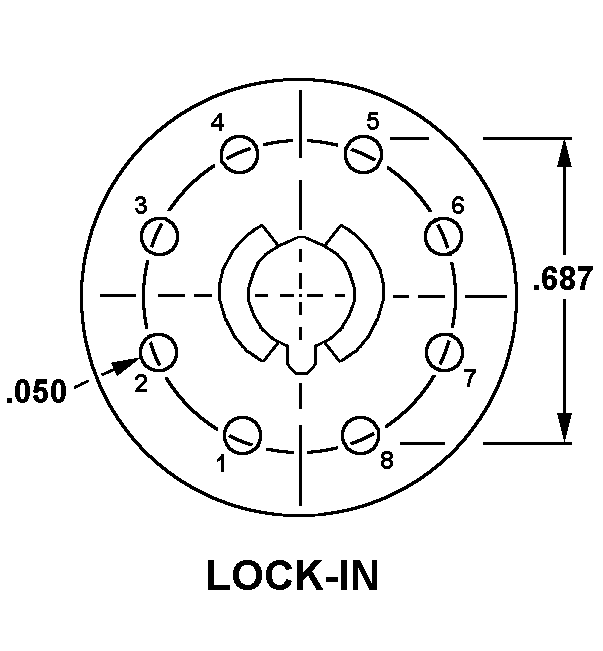

LOCK-IN
Cross Reference | NSN 5935-00-063-3581
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SK630 | 06980 | COMMUNICATIONS & POWER INDUSTRIESLLC |
| 1949900089 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
Technical Data | NSN 5935-00-063-3581
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | LOCK-IN |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT |
| OVERALL HEIGHT | 1.273 INCHES NOMINAL |
| OVERALL DIAMETER | 3.110 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.348 INCHES MINIMUM AND 0.388 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| GROUND TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.145 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 2.305 INCHES NOMINAL |
| FEATURES PROVIDED | CENTER SHIELD AND COMPONENT RETAINING DEVICE |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 400.0 AC AND 400.0 DC |
| FABRICATION METHOD | MOLDED |
| CAPACITANCE IN PICOFARADS | 1100.0 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
