NSN 5935-00-063-1063
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-063-1063 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 59105, 59-105, 147955, 147-955, 59105, 59-105, 147955, 147-955, MILS128835, MILS12883-5, TS0607P01, M128830501, M12883/05-01, A8835355REV0, 4913, 5935-00-063-1063, 00-063-1063, 5935000631063, 000631063
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-063-1063 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/METAL SADDLE

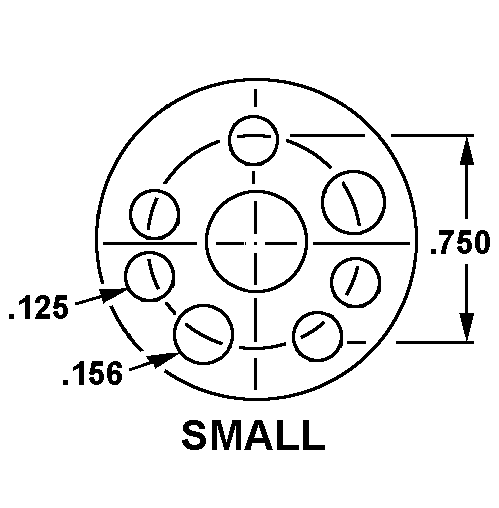

ROUND, W/TWO MOUNTING HOLES
SMALL
Cross Reference | NSN 5935-00-063-1063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 59-105 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 147-955 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 59-105 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 147-955 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| MILS12883-5 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| TS0607P01 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M12883/05-01 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| A8835355REV0 | 21921 | RCA CORPDISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| 4913 | 83827 | RESISTORS INC |
Technical Data | NSN 5935-00-063-1063
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SMALL |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND COPPER |
| BODY STYLE | TOP OR BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.859 INCHES MINIMUM AND 1.891 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.000 INCHES MAXIMUM |
| OVERALL WIDTH | 1.281 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.843 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.093 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.495 INCHES MINIMUM AND 1.505 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT SIZE |
| TEST DATA DOCUMENT | 81349-MIL-S-12883 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL--12883 TO 5 GOVERNMENT SPECIFICATION |
| SPECIFIC EQUIPMENT ACCOMMODATED | VIBRATOR |
| CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 1250.0 AC AND 1250.0 DC |
| FABRICATION METHOD | MOLDED |
| CONTACT RESISTANCE IN OHMS | 0.015 |
| TEMP RATING | 100.0 DEG CELSIUS |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
