NSN 5935-00-061-7250
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-061-7250 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 86CP6, 86CP82, 86CP8-2, 86CP82, 86CP8-2, 8PB, SCD00961, SCD0096-1, 49A0034, 678099028, 678-099028, 5935-00-061-7250, 00-061-7250, 5935000617250, 000617250
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-061-7250 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

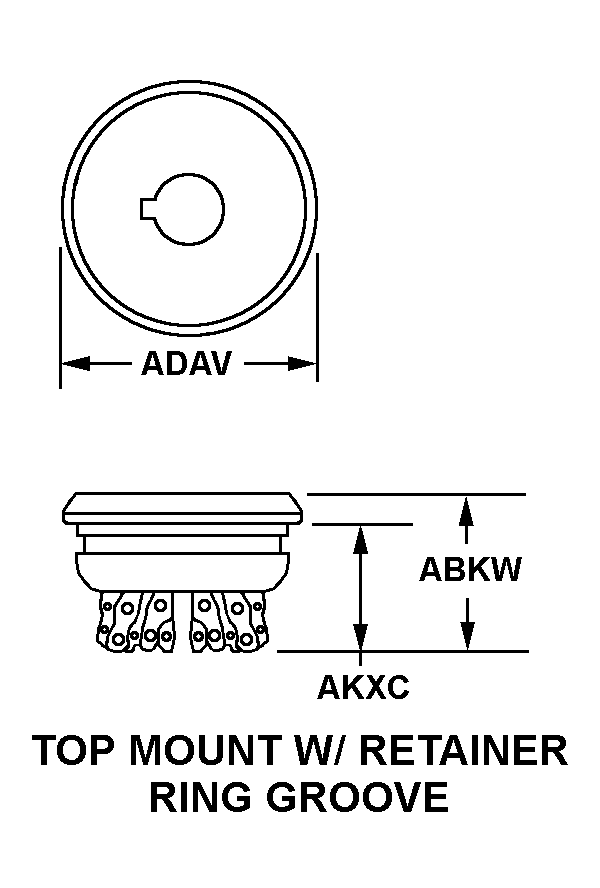

TOP MOUNT W/RETAINER RING GROOVE
ROUND, BODY
OCTAL .687 INCH
Cross Reference | NSN 5935-00-061-7250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 86CP6 | 13511 | AMPHENOL CADRE DIV BUNKER RAMO CORP |
| 86CP8-2 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 86CP8-2 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 8PB | 71785 | CINCH CONNECTORS, INC. |
| SCD0096-1 | 03024 | SENIOR OPERATIONS LLCDBA KETEMA AEROSPACE |
| 49A0034 | 52025 | SIEMENS ENERGY & AUTOMATION, INC.DIV SIEMENS ENERGY & AUTOMATION DBA |
| 678-099028 | 53110 | VIASYS RESPIRATORY CARE INC.DBA BIOSYS HEALTHCARE |
Technical Data | NSN 5935-00-061-7250
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | OCTAL .687 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | NICKEL AND G0000 ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/RETAINER RING GROOVE |
| OVERALL HEIGHT | 0.940 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.250 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| FEATURES PROVIDED | CENTER SHIELD |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.800 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT MATERIAL SILVER |
