NSN 5935-00-061-4922
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-061-4922 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 8850432, R101369, 5935-00-061-4922, 00-061-4922, 5935000614922, 000614922
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-061-4922 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

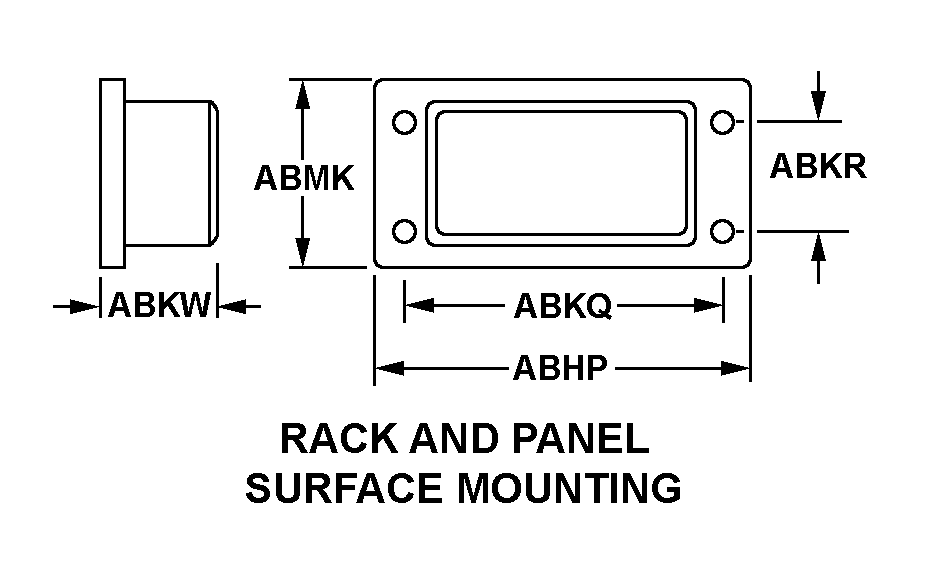

RACK AND PANEL SURFACE MOUNTING
Cross Reference | NSN 5935-00-061-4922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8850432 | 19203 | PICATINNY ARSENAL |
| R101369 | 99747 | TELEDYNE REYNOLDS, INC. |
Technical Data | NSN 5935-00-061-4922
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RACK AND PANEL SURFACE MOUNTING |
| OVERALL LENGTH | 3.300 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.540 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.550 INCHES NOMINAL |
| OVERALL HEIGHT | 1.800 INCHES NOMINAL |
| OVERALL WIDTH | 2.400 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
