NSN 5935-00-059-4688

Part Details | ELECTRICAL CONNECTOR BACKSHELL

5935-00-059-4688 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Alternate Parts: 2021102, 202110-2, 10187788001, 10187788-001, 5935-00-059-4688, 00-059-4688, 5935000594688, 000594688

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196100-059-468867169 ( BACKSHELL, ELECTRICAL CONNECTOR )
REFERENCE DRAWINGS & PICTURES

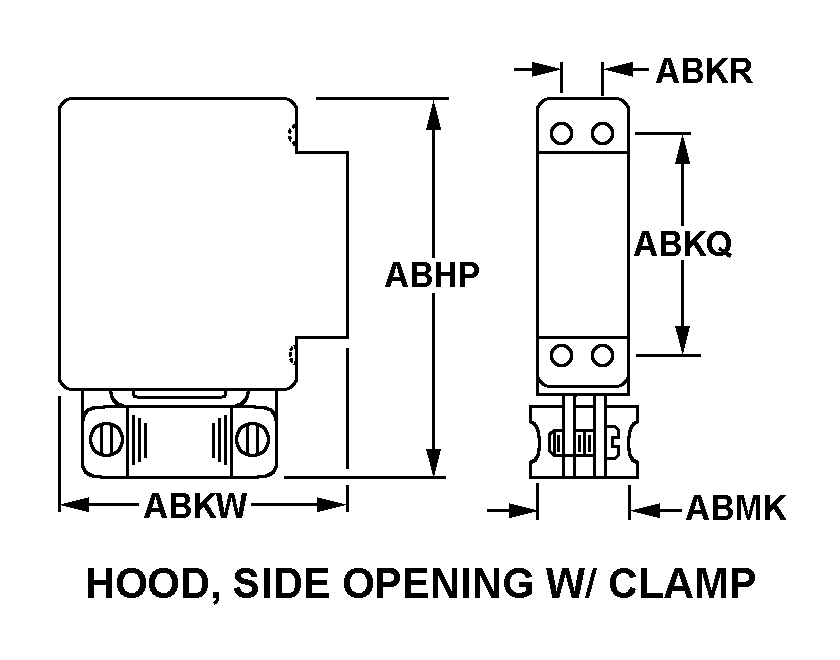

HOOD, SIDE OPENING W/CLAMP

BACKSHELL,ELECTRICA | 5935-00-059-4688, 000594688
Cross Reference | NSN 5935-00-059-4688
Part Number Cage Code Manufacturer
202110-200779TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY
10187788-00118876U S ARMY AVIATION AND MISSILECOMMAND
Technical Data | NSN 5935-00-059-4688
Characteristic Specifications
STYLE DESIGNATOR HOOD, SIDE OPENING W/CLAMP
OVERALL LENGTH2.845 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH2.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH0.812 INCHES NOMINAL
OVERALL HEIGHT1.875 INCHES NOMINAL
OVERALL WIDTH1.145 INCHES NOMINAL
MATERIAL STEEL
SURFACE TREATMENT CADMIUM
MOUNTING FACILITY TYPE AND QUANTITY4 THREADED HOLE
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE0.138 INCHES
THREAD CLASS2B
THREAD QUANTITY PER INCH32
THREAD DIRECTION RIGHT-HAND
CABLE OPENING QUANTITY1
CABLE OPENING DIAMETER0.750 INCHES MAXIMUM
END ITEM IDENTIFICATIONAN/MSM-81SHOP EQUIPMENT,GUIDED MISSILE SYSTEM,FIELD MAINTENANCE
