NSN 5935-00-059-2841
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-059-2841 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: MS750201, MS75020-1, 5935-00-059-2841, 00-059-2841, 5935000592841, 000592841
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-059-2841 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

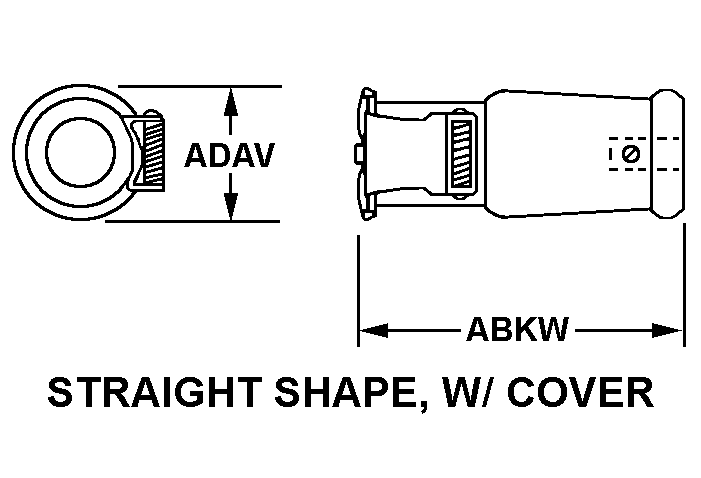

STRAIGHT SHAPE, W/COVER
Cross Reference | NSN 5935-00-059-2841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS75020-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5935-00-059-2841
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, W/COVER |
| OVERALL HEIGHT | 5.875 INCHES NOMINAL |
| OVERALL DIAMETER | 2.625 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP W/TELESCOPING BUSHING |
| CABLE ENTRANCE DIAMETER | 0.950 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| SPECIFICATION/STANDARD DATA | 96906-MS75020 GOVERNMENT STANDARD |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.012 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
